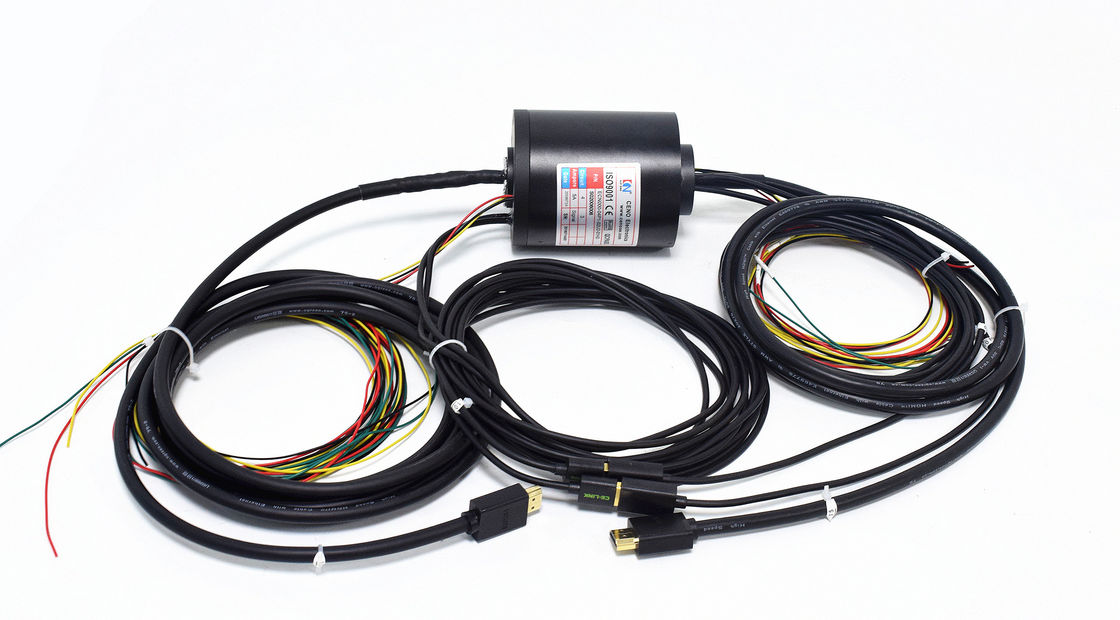

2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material

2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material

  • 2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material
  • 2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material
  • 2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material
  • 2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material
2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-04P1-02U2-01HD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuit: 4*5A,2*USB2.0 ,1*HDMI Signal Voltage: 380VAC
Contact Material: Precious Metal Protection Grade: IP54
High Light:

small slip ring

,

power slip ring

 HDMI Signal High Definition Slip Ring With 2 Circuit  USB2.0 For  VR application





The high definition slip ring ,it can mix 1-24 channel signal and tiny electric current and multiple installation options.

It transfers HD-SDI/video and current signal,it support video standard of 2K@90Hz with less noise,longer life,low torque, stable rotation,electrical noise ≤ 15 mΩ. Our Company slip ring can be customized according to your requirements of various types of HD-SDI slip ring and SDI rotary joint. .If you have any interest, please contact us online or by email.









Feature

  • Up to 2K @90hz video standard, no flash screen and no frame loss
  • More than HDM & SDI signal type
  • Low contact resistance, compact size, low torque, reliable operation



Application

  • HDMI Security system, VR application
  • Infrared photography,HD pan-tilt
  • Electric crane, Radar antenna





Specification



Parameter
Circuit 4*5A,2*USB2.0 ,1*HDMI signal Protection grade IP54
Voltage 380VAC Working temperature -20°C ~ + 60°C
Insulation

500 MΩ@500VDC(power),

20 MΩ@100VDC,(signal)

Rotating speed 0~300rpm
Dielectric strength

≥1000V@50hz(power)

≥100V@50hz(signal)

Contact material Precious metal
Electric noise ≤60%RH Housing material Aluminum alloy oxidation





Outline Drawing



2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material 0





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

2 Circuit VR Application HDMI Slip Ring Precious Metal Contact Material 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
