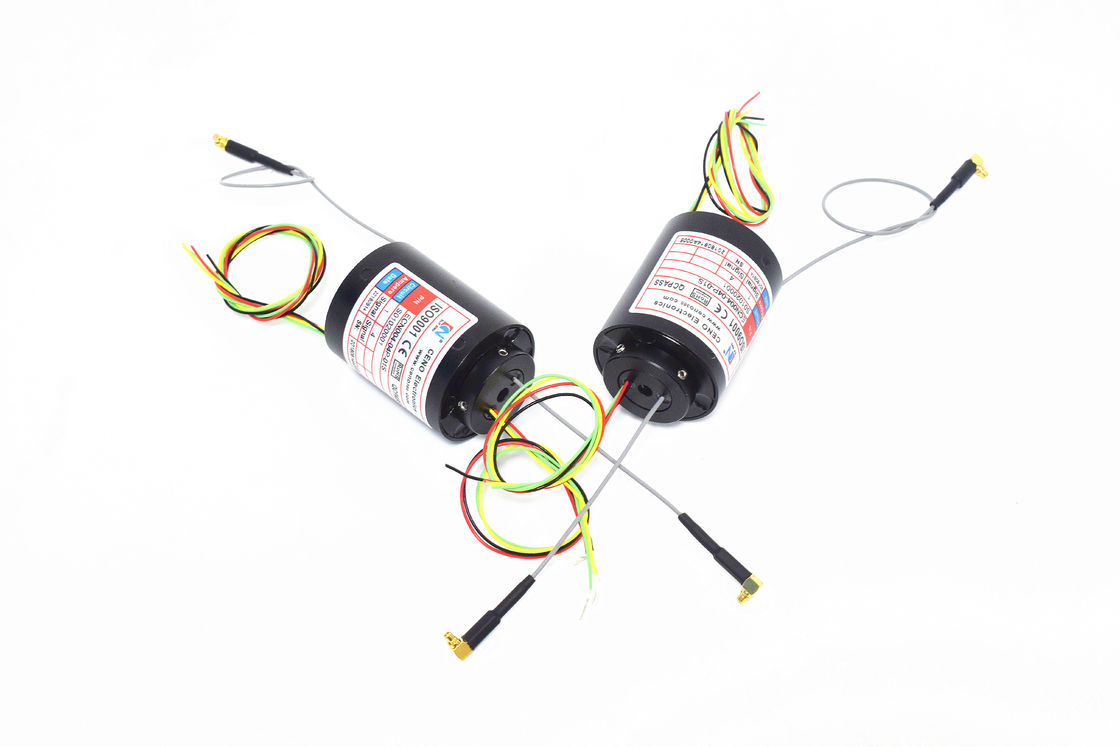

380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency

380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency

  • 380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency
  • 380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency
  • 380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency
  • 380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency
380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN004-04P-01S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuit: 1*coaxial Signal,4*signal Voltage: 380VAC
Contact Material: Gold To Gold Rotating Speed: 0~400rpm
High Light:

small slip ring

,

power slip ring

Up To 900MHz Signal Frequency Slip Ring With Coaxial Signal





The high frequency slip ring manufactured by CENO is composed of a two-channel microwave rotary joint and a precision conductive slip ring, which includes a two-channel microwave signal channel, a number of power supply channels and signal channels, and can be integrated with a precision absolute value encoder or a precision rotary transformer.The product has good performance, mainly used in radar antenna, moving through, moving in the receiving antenna.The product can change the number and installation size of conductive slip ring channels according to the actual use requirements, and can integrate multiple  types of signal channels to meet the different needs of different occasions.





Feature

  • High frequency signal, up to 900MHz signal frequency

  • Stable performance and high reliability
  • Low contact resistance, compact size, low torque, reliable operation



Application

  • Medical treatment equipment
  • Automation equipment
  • Radar antenna



Option

  • Circuit
  • Signal type





Specification



Parameter
Circuit 1*coaxial signal,4*signal Protection grade IP54
Voltage 380VAC Working temperature -20°C ~ + 60°C
Insulation

≥100 MΩ@500VDC



Rotating speed 0~400rpm
Dielectric strength

≥600VDC@50hz



Contact material Gold to Gold
Electric noise ≤60%RH Housing material Aluminum alloy oxidation black





Outline Drawing



380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency 0





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

380 VAC HDMI Slip Ring , Coaxial Slip Ring 900 MHz Signal Frequency 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
