Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint

Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint

  • Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint
Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: RCN0167B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: T/T,Paypal,, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Channel Number: 1 Frequency: DC To 67 GHz
Interface Type: 1.85-f (50 Ω) Interface Orientation: Style I
Body Material: Copper Alloy Peak Power,max: 1KW
DC Carrying: 0.2A Rotating Speed: 200rpm -300 Rpm
Weight: 0.03kg
High Light:

300 Rpm RF Rotary Joint

,

DC To 67 GHz RF Rotary Joint

,

1KW RF Rotary Joint

Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint



1KW Radio Frequency Rotary Joint

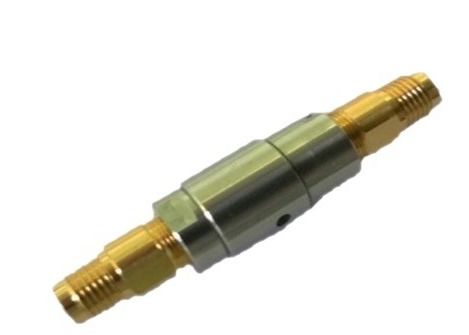

CENO's RF rotary joint belongs RCN series. RF rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure RF rotary joint with the high frequency signal low damage and reliable transmission,CENO uses import high elastic wear-resisting material in the internal key contact point of the RF rotary joint and do special plating in the surface for it. It is a connector device to transmit high frequency signal from the static to rotating part.



Radio frequency characteristics

Interface type /

material / surface finish

1.85-f (50 Ω) / copper alloy / gold plated
Interface orientation Style I
Frequency range DC to 67 GHz
Peak power capability 1 kW @ 2.000 m if not pressurized
Average power capability

10 W @ DC to 10 GHz / 5 W @ 10 to 26 GHz

3 W @ 26 to 50 GHz / 1 W @ 50 to 67 GHz

VSWR, max.

1.1 @ DC to 10 GHz / 1.2 @ 10 to 26 GHz

1.3 @ 26 to 50 GHz / 1.4 @ 50 to 67 GHz

VSWR variation over rotation,

max.

0.02 @ DC to 10 GHz / 0.04 @ 10 to 26 GHz

0.08 @ 26 to 50 GHz / 0.10 @ 50 to 67 GHz

Insertion loss, max

0.2 dB @ DC to 10 GHz / 0.3 dB @ 10 to 26 GHz

0.4 dB @ 26 to 50 GHz / 0.5 dB @ 50 to 67 GHz

Insertion loss variation over

rotation, max.

0.02 dB @ DC to 10 GHz / 0.04 dB @ 10 to 26 GHz

0.08 dB @ 26 to 50 GHz / 0.10 dB @ 50 to 67 GHz

Phase variation over rotation,

max.

1 deg. @ DC to 10 GHz / 2 deg. @ 10 to 26 GHz

3 deg. @ 26 to 50 GHz / 4 deg. @ 50 to 67 GHz

DC carrying capability 0.2 A



Mechanical characteristics

Rotating speed,

max. / nominal

300 / 200 rpm
Life, min. 0.2 x 106 revolutions

Torque (room / min.

temperature), max.

0.5 Ncm / - @ start-up

0.5 Ncm / - @ rotation

Interface loads, max.

±0.5 N in axial direction

±0.5 N in radial direction

Case material copper alloy and stainless steel
Case surface finish partially gold plated
IP protection level IP50
Weight, approx. 0.03 kg
Marking adhesive label



Environmental conditions

Operation
Ambient temperature range -40 to +60°C
Relative humidity, max. 95% (non-condensing)
Storage
Ambient temperature range -55 to +80°C
Relative humidity, max. 95% (non-condensing)



Features

  • Stable performance and high reliability
  • Integrated RF rotary joint
  • Apply to RF signal and high data speed rate transmission



Applications

  • Simulation tester
  • Antenna system
  • Traffic control system


Optional

  • Circuit number
  • Installation way
  • Radio frequency range



Outline Drawing

Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint 0



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Copper Alloy 1KW DC To 67 GHz 300 Rpm RF Rotary Joint 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
