High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51

High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51

  • High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51
  • High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51
  • High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51
High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: QCN0102-06P1-02EM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Air Channel Number: 1 Current: 6*5A,1*PE,2*100M Ethernet Signal
Voltage: 0~380VAC/VDC Media: Compress Air
High Light:

high pressure rotary union

,

pneumatic rotary union

Right Angle High Speed Rotary Joint Integrate Current Ethernet And Air

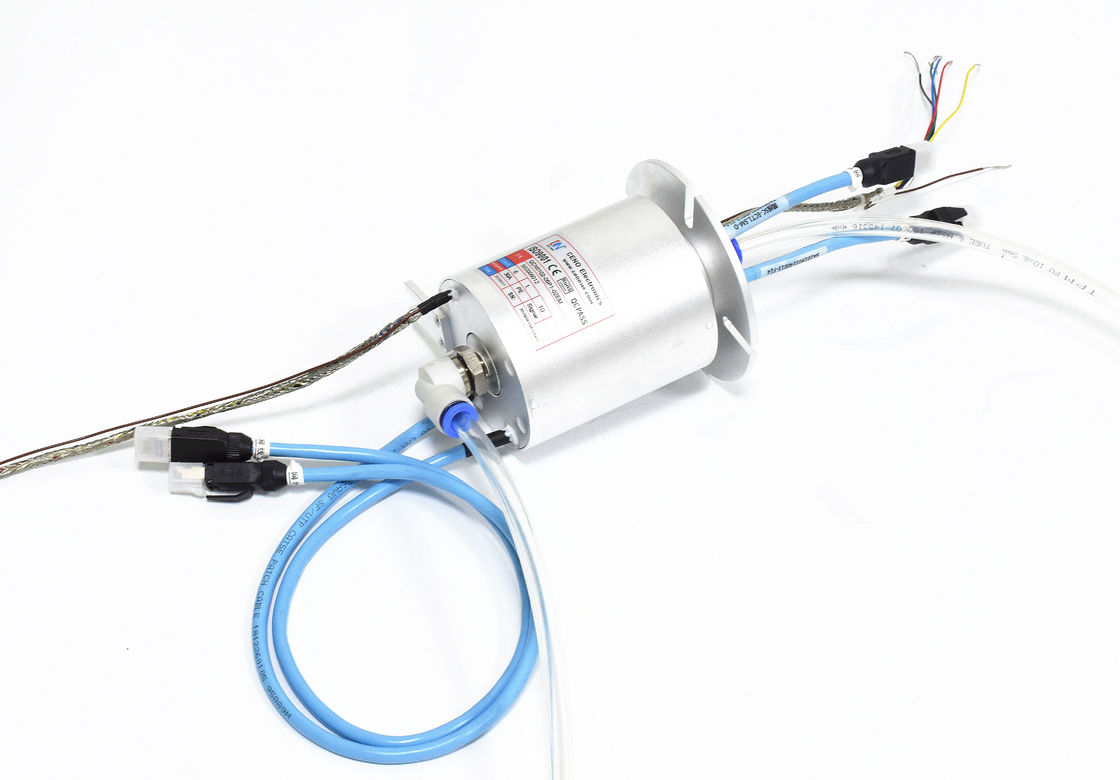

QCN0102-06P1-02EM is an integrated rotary union slip ring, which is designed by CENO for lithium battery equipment to pass air and power. This rotary union has one air channel with interface straight-through, the interface size is G1/4 and pipe size is Ø 10 mm .As well as 6 circuits 5A,1circuit PE and 2 groups of 100M Ethernet signals in this union.Its rotating speed at 0~250RPM under the working temperature of - 40 ℃ ~ + 80 ℃ with its characteristic of stable signal transmission, no interference, no error.







Features

  • Integrate current and gas-liquid rotating joint
  • Current channel number and rotary joint size could be optional
  • Various type signal could be integrated
  • Right angle high speed rotary joint




Applications

  • Lithium electricity equipment
  • Automatic equipment




Optional

  • Gas-liquid rotary joint size
  • Circuit number
  • Installation way
  • Signal and ethernet type







Specification



QCN0102-06P1-02EM Specification Picture
Current 6*5A,1*PE,2*100M Ethernet signal High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51 0
Voltage 0~380VAC/VDC
Insulation resistance

≥500MΩ@500VDC(current)

≥100MΩ@100VDC(signal)

Dielectric strength

≥1500V@50hz(current)

≥500 V@50hz(signal)

Resistance fluctuation 10mΩ(with50rpm)
Operating speed 0~250rpm
Contact material Precious metals
Operating temperature -40℃~+80℃
IP protection grade IP51
Channel number 1* air
Connector size G1/4
Max pressure 0.6MPa
Pipe size Ø10mm





Outline Drawing

High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51 1







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

High Speed Air Rotary Union Joint Right Angle Integrate Current Ethernet / Air IP51 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
