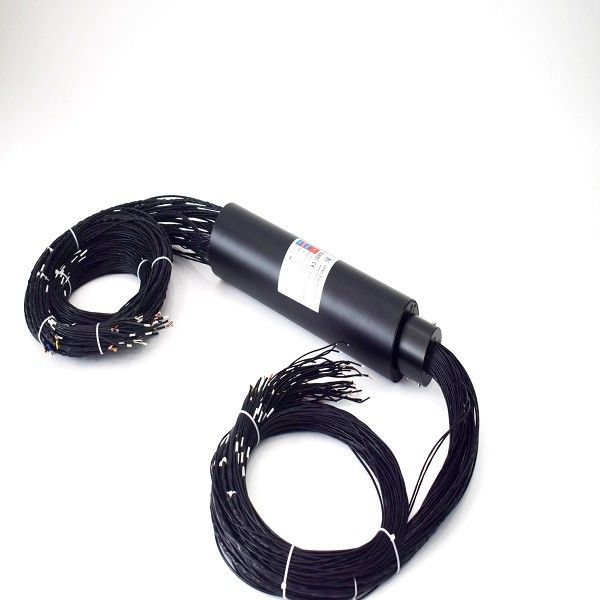

Motion Simulator 23mm Through Bore Slip Ring Gold To Gold Contacts

Motion Simulator 23mm Through Bore Slip Ring Gold To Gold Contacts

  • Motion Simulator 23mm Through Bore Slip Ring Gold To Gold Contacts
  • Motion Simulator 23mm Through Bore Slip Ring Gold To Gold Contacts
  • Motion Simulator 23mm Through Bore Slip Ring Gold To Gold Contacts
Motion Simulator 23mm Through Bore Slip Ring Gold To Gold Contacts
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN023-26P-94S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 6*30A,20*10A,94*1A (Signal) Through Bore Size: 23 Mm
Protection Grade: IP54 Working Speed: 0~150rpm
Contact Material: Gold To Gold Rating Voltage: 400VAC / 50VDC / 220 VAC
Housing Material: Aluminium Alloy Application: Liquid Filling Machinery,Motion Simulator
High Light:

23mm Through Bore Slip Ring

,

150rpm Through Bore Slip Ring

,

Motion simulator electrical slip rings

120 Lines Multi Channel 23mm Through Bore Slip Ring Gold To Gold Contacts



120 lines multi channel slip ring with customized inner hole size 23mm,gold to gold contacts,black aluminium housing.




ECN023-26P-94S is a multi channel slip ring with customized inner hole size 23mm ,there are have 120 lines in total , including 26 lines of power and 94 lines of signal .Multi-channel slip ring is the slip ring with more than 50 channels,this kind of CENO's multi-channel slip ring could reach more than 500 channel. It could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency.This multi-channel slip ring gets long lifespan characteristic. Multi-channel slip ring produced by CENO has optional operating speed, even up to 2000 rotation per minute.The gold to gold contacts can make sure the lifetime longer and transmission stable.




Specification





ECN023-26P-94S Specification
Circuits & Current 6*30A,20*10A,94*1A (Signal)
Voltage 400VAC / 50VDC / 220 VAC
Dielectric strength

≥1000V@50Hz (Power)

≥300V@50Hz (Signal)

Insulation resistance

≥500MΩ@500VDC (Power)

≥100MΩ@300VDC (Signal)

Operating speed 0-150 rpm
Contact material Gold to gold
Housing material Aluminum alloy
IP grade IP54
Inner hole size 23 mm
Working temperature -20°C ~ +60°C






Features



  • Smooth rotation
  • Multi channel 120 lines
  • Customized ID 23mm
  • Gold-gold contacts
  • Compact structure
  • Long lifetime







Applications



  • Industrial machinery
  • Rotary index tables
  • Process control equipment
  • Wrapping machinery
  • Lithium battery equipment
  • Motion simulator
  • Liquid filling machinery









Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material











Outline Drawing







 Motion Simulator 23mm Through Bore Slip Ring Gold To Gold Contacts 0













Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
