Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring

Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring

  • Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring
  • Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring
  • Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring
  • Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring
Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: ECN000-01S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: T/T,Paypal,, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Channel Number: 1 Frequency: 100M
Interface Type: SMA Body Material: Aluminium Alloy
Peak Power,max: 1KW Rotating Speed: 0~500 Rpm
Contact Material: Precious Metal Insertion Loss: <1dB
High Light:

500rpm Radio Frequency Rotary Joint

,

500rpm Radio Frequency Slip Ring

,

100M Radio Frequency Rotary Joint

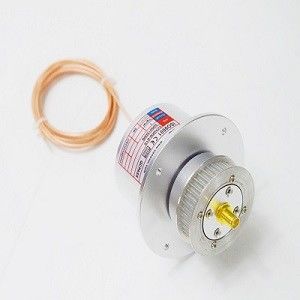

Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring



Radio Frequency Rotary Joint Slip Ring with 1 channel coaxial cable ,aluminium housing,used for satellite communication.





It’s a solid RF Coaxial rotary joint,also named high frequency rotary joint, wave guide rotary joint.

The channel coaxial rotary joint is conducive to reducing the size of the structure and processing,

and is conducive to stable rotation. It meets the microwave transmission in a wide frequency band

with excellent performance indicators, including the rotating section and the fixed end.RF rotary

joint with compact size, and stable rotating performance with RG 178 coaxial cable and aluminium

housing.Typical application including radar antennas,research & development, telecommunication

networks,military industry.





Radio frequency characteristics



ECN000-01S Specification
Circuits 1*RG178 coax cable
Voltage 240VAC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 0~500 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Interface type SMA connector
Frequency range 100M
Insertion loss <1dB
VSWR <1.5

Features

  • Stable performance and high reliability
  • Integrated RF rotary joint
  • Apply to RF signal and high data speed rate transmission
  • Easy maintenance
  • Anti-interference ability
  • Compact structure
  • With SMA connector
  • 1 channel coaxial cable







Applications

  • Simulation tester
  • Antenna system
  • Traffic control system
  • High definition network
  • Satellite communication
  • Military industry
  • Radar antennas









Optional

  • Circuits number
  • Frequency range
  • Interface type
  • IP protection grade









Outline Drawing

Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring 0



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
