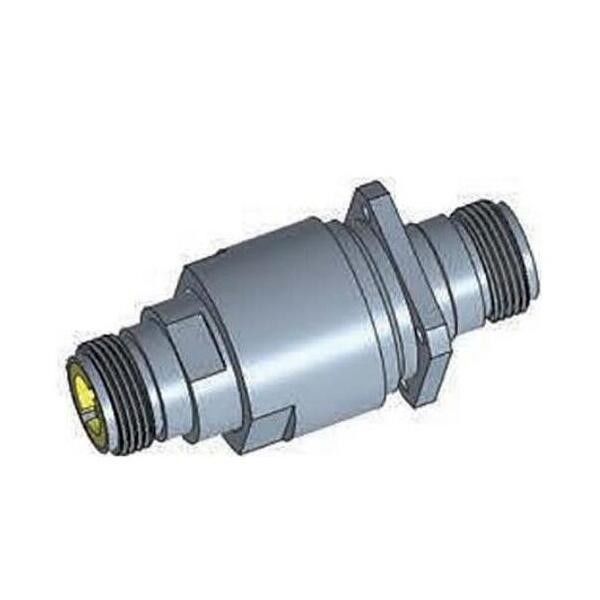

Radar Antennas Radio Frequency Rotary Joint With Peak Power 10KW

Radar Antennas Radio Frequency Rotary Joint With Peak Power 10KW

  • Radar Antennas Radio Frequency Rotary Joint With Peak Power 10KW
  • Radar Antennas Radio Frequency Rotary Joint With Peak Power 10KW
Radar Antennas Radio Frequency Rotary Joint With Peak Power 10KW
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: RCN0118NB
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: T/T,Paypal,, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Channel Number: 1 Frequency: DC-18GHz
Interface Type: I Body Material: Copper Alloy -40℃-+70℃
IP Grade: IP54 Rotating Speed: 0~60rpm
Contact Material: Precious Metal Insertion Loss: <0.4 DB
Weight: 150 G
High Light:

IP54 Radio Frequency Rotary Joint

,

60rpm Radio Frequency Rotary Joint

,

60rpm rf slip ring





Radio frequency coaxial rotary joint with peak power 10KW,lifetime 5 million turns,compact size,and stable rotating performance,Copper alloy material,used for satellite communication,radar antennas.







RCN0118NB is a RF coaxial rotary joint,also named high frequency rotary joint,wave guide rotary joint.The channel coaxial rotary joint is conducive to reducing the size of the structure and processing,conducive to stable rotation.It meets the microwave transmission in a wide frequency band with excellent performance indicators,including the rotating section and the fixed end.RF rotary joint with compact size,and stable rotating performance,lifetime upto 5 million turns.Typical application including radar antennas,research & development,telecommunication networks,military industry.The frequency of high-frequency joints is from DC to 50Ghz,and the the channel could up to five channels.Any special requirements pelase contact with CENO team ,we will provide you with the best solution.











Specfication:





RCN0118NB Specification
Circuits 1
Frequency DC-18GHz
Peak power 10KW max
Average power

100W DC-4.5GHz

50W 4.5GHz-8GHz

30W 8GHz-18GHz

Vswr 1.3 (0.05 Max)
Insertion loss 0.4dB (0.05dB Max)
Phase stability 2 deg (Max)
Working speed 30 rpm
Lifetime 5 million turns
Torque 0.3Nm
IP protection grade IP54
Material Copper alloy
Working temperature -40℃-+70℃
Storage temperature -55℃-+85℃
Relative humidity 95%
Weight 150g









Features

  • Anti-interference ability
  • Compact structure
  • Connector type NF
  • Peak power 10KW









Applications

  • High definition network
  • Satellite communication
  • Military industry
  • Radar antennas









Optional

  • Circuits number
  • Frequency range
  • Interface type
  • IP protection grade











Outline Drawing:



Radar Antennas Radio Frequency Rotary Joint With Peak Power 10KW 0
