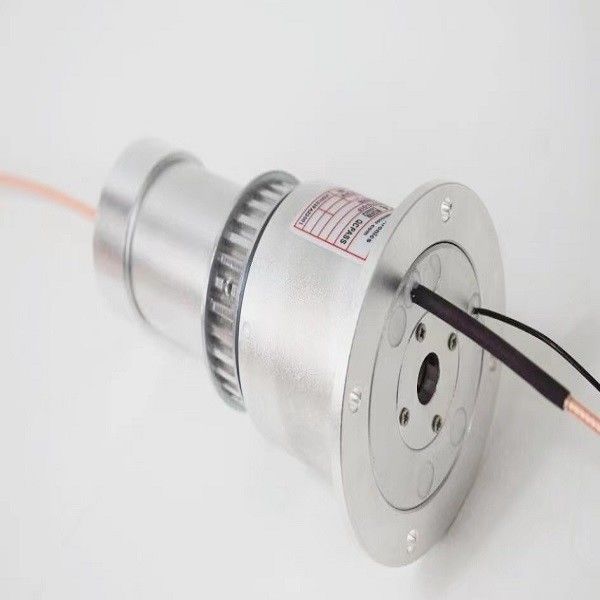

RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System

RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System

  • RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System
  • RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System
  • RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System
RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: ECN000-01S-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: T/T,Paypal,, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Channel Number: 1*RG316 Coax Cable,1*Fiber Optic Frequency: 100M
Body Material: Aluminium Alloy Peak Power,max: 1KW
Rotating Speed: 0~2000 Rpm Contact Material: Precious Metal
Insertion Loss: <1dB Voltage: 240VAC
High Light:

2000rpm RF Slip Ring

,

RG316 RF Slip Ring

,

RG316 Fiber Optic Slip Ring

RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System



2000rpm Radio Frequency Rotary Joint SlipRing with RG316 cable &Fiber optic ,used for radar system,Robotics cameras.







ECN000-01S-01F is a high definition signal slip ring integrated fiber optic ,developed by CENO Electronics, which taking the lead of originality in its area with advanced design idea and manufacturing technology. Stable transmission of HDMI video signal, certified by stringent tests and acknowledged by customers It is perfectly applied to video surveillance field that transmits HD video signal and other signals in 360° continuous rotation. It is of high quality and reliability.Typical application including robotics ,cameras,radar antennas,military industry.It’s a solid RF Coaxial rotary joint,also named high frequency rotary joint, wave guide rotary joint.CENO can make special design according customer's request,please contact with if you have any remind,or check with www.ceno360.com,we will provide you with the best solutions .





Specification



ECN000-01S-01F Specification
Circuits 1*RG316 coax cable,1*Fiber optic
Voltage 240VAC
Electrical noise ≤70mΩ(30rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 0~2000 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Frequency range 100M
Insertion loss <1dB
VSWR <1.5







Features



  • 0~2000 rpm working speed
  • Compact structure
  • With RG 316 cable & fiber
  • Light weight







Applications



  • High definition network
  • Satellite communication
  • Military industry
  • Radar antennas
  • Robotics cameras







Optional

  • Circuits number
  • Frequency range
  • Interface type
  • IP protection grade









Outline Drawing

RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System 0









Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

RG316 Cable Fiber Optic 2000rpm RF Slip Ring For Radar System 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
