Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine

Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine

  • Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine
  • Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine
Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: QCN0301-08P-04S-02EG
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Housing Material: Aluminum Alloy Air Channel Number: 2
Power Channel Number: 8 Signal Channel Number: 4
Ethernet Channel Number: 2 Ethernet Speed Rate: 1000Mbps
High Light:

cable slip ring

,

electrical swivel joint

Gigabit Ethernet Slip Ring With RJ45 Connector Air Channel For Filling Machine



Due to accumulating abundant case experience and getting hold of mature core technology, CENO's Ethernet technology is the most popular used network technology, it provides 1 GBPS bandwidth of communication for Internet and communications system.It has the characteristic of reliability transmission and economy in similar rate communication system.

CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps , or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement.



Feature

  • Transmit 100M/1000M Ethernet signal.
  • Transmit stably, no package loss,no cross talk, low loss.
  • Integrate multi-signal and current.
  • No interference between power and signal, comply with EMC compatibility.
  • RJ45 connector is available.





Application

  • Simulation test equipment
  • Automation machinery





Specification

Parameter
Circuit 8 * 30A ; 4 * 2A;2group*Ethernet Protection grade IP54
Voltage 380VAC/VDC temperature -20°C~+60°C
Insulation resistance

500MΩ@500VDC(Power)

100MΩ@100VDC(signal)

Rotating speed 0~150rpm
Dielectric strength

≥1500VAC@50hz(Power)

≥500 V@50hz(signal)

Contact material Precious meter
Electrical noise ≤10mΩ(base on 50rpm) Housing material Aluminum alloy oxidation white
Gas-liquid technical Ref
Circuit Channel 3 channels Connector size G1/8
Max pressure 5MPa Rotating torque <0.5N*m



Outside drawing



Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine 0

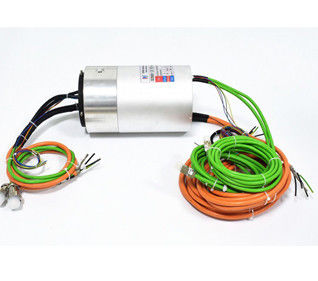

Product picture

Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine 1



Application

Gigabit Ethernet Slip Ring RJ45 Connector Air Channel For Filling Machine 2







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
