| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN044-04P2-04S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 4*10A ,4*1A | Channel Number: | 4 |
|---|---|---|---|
| Through Bore Size: | Ø44mm | Protection Grade: | IP67 |
| High Light: | electrical slip ring,signal slip ring |
||

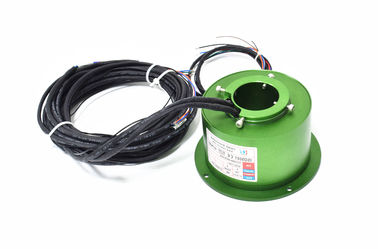

IP67 4 Channel Numbers Waterproof Slip Ring Used In Underwater
Waterproof slip ring is kind of high seal conductive slip ring, high protection grade IP67,support signal and power
transmission,specially designed for use in underwater or high-pressure subsea environments.
CENO's water-proof slip ring is designed for ships, harbor equipment,test equipment and some application which has water or moisture environment,to transmit precision signal, weak current, large current, high voltage. Meanwhile its design prevents the liquid seeping into the slip ring with the characteristics of low torque on rotation and low loss on signal transmission,as well as no need to do maintenance, low electrical noise, long lifespan and so on.
Features
Applications
Optional
Specification
| ECN044-04P2-04S Specification | Picture | |
| Current | 4*10A ,4*1A |  |
| Through bore size | Ø44mm | |
| Protection Grade | IP67 | |
| Working speed | 0~600rpm | |
| Contact material | Precious metal | |
| Rating Voltage | 0~440VAC/24VDC | |
| Insulation resistance |
1000MΩ@1000VDC(power) 500MΩ@500VDC(signal) |
|
| Dielectric strength |
1000VAC@50Hz(power) 500VAC@50Hz(signal) |
|
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
