6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery

6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery

    • 6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery
    • 6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery
    • 6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery
    • 6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery
  • 6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN127-06S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Current: 6*1A Rating Voltage: 220VAC
    Working Speed: 0~10rpm Protection Grade: IP65
    Diameter: Ф127 Contact Material: Precious Metal
    High Light:

    electrical slip ring

    ,

    large slip ring

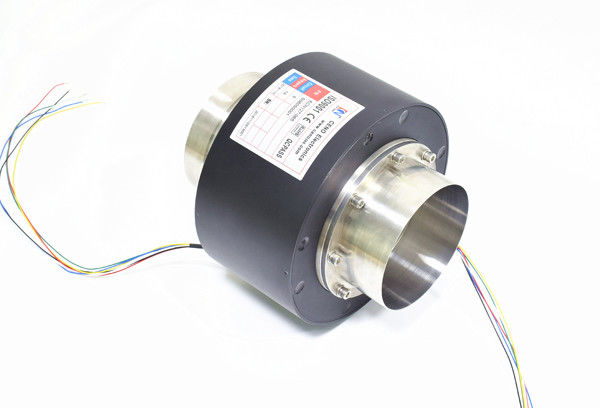

     6 Group 1Amp Small Current But  Big Size  Slip Ring  For Foodstuff Processing Machinery





    Big size slip-ring is named for its large size. It gets big through hole size and high protection level, is generally used in larger equipment and systems.The system can be fitted directly to the center of the rotation,to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment, large material transfer equipment and other systems.



    we can custom to make various slip ring as requested !



    Application



    • Automation equipment
    • Foodstuff processing machinery





    Features

    • High protection class
    • Long lifespan, maintenance-free
    • Various type of signal could be integrated
    • Low Torque ,low loss ,low electrical noise




    Option

    • Circuit number
    • Current size
    • Protection grade
    • Signal type







    Specification



    Parameter
    Circuit 6*1A, Protection Grade IP65
    Voltage 220VAC Temperature -20℃~+60℃
    Insulation resistance ≥300MΩ@500VDC Humidity 60%RH
    Dielectric Strength ≥500VAC@50Hz Rotating speed 0~10rpm
    Diameter Ф127mm Contact Material Precious metal



    Outline Drawing



    6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery 0







    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    6 Group Large Slip Ring 1Amp Small Current Fit Foodstuff Processing Machinery 3



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
