| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-15P-02S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 15*10 A, 2*485 Signal | Rating Voltage: | 380VAC/VDC |
|---|---|---|---|
| Working Speed: | 0~300rpm | Protection Grade: | IP54 |
| Temperature: | -20°C~+60°C | Contact Material: | Precious Metal |
| High Light: | high voltage slip ring,digital slip ring |
||

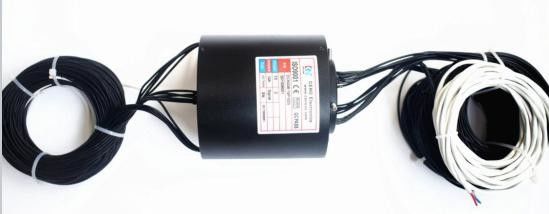

Hole Diameter 38mm Profi-Bus Slip Ring With RS Signal Precisou Metal Material
Field-bus is an open, fully digital, two-way, multi-station communication system,which has been developed rapidly in recently years.And it iswidely applied in field intelligent equipment interconnected communication network, such as automation, process automation, electric automation,building automation,etc. It serves as the basis for the communication digital network of the factory with effective communication between equipment and equipment, and between equipment and higher control system.Aiming at the different application requirements of Fieldbus ,such as CAN, Profibus and field Ethernet, CENO has been developped different kind of slip ring to meet related requirement.
Features
Option
Application
Specification
| Parameter | |||
| Circuit | 15*10 A, 1*485 signal | Protection Grade | IP54 |
| Voltage | 380VAC/VDC | Temperature | -20°C~+60°C |
| Insulation Resistance | 100MΩ@300VDC | Rotating speed | 0~300rpm |
| Dielectric Strength |
1000 V@50hz(current) 300 V@50hz(signal) |
Contact Material | Precious |
| Friction torque | ≤0.15N*m | Housing material | Aluminum alloy oxidation black |
| Hole diameter | Ø38 | Electrical noise | ≤70mΩ |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
