| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-20P2-38S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 20* 10A,3*port Signal 32*Gbe，3*signal | Rating Voltage: | 380VAC |
|---|---|---|---|
| Working Speed: | 0~300rpm | Protection Grade: | IP54 |
| Temperature: | -20°C~+60°C | Contact Material: | Precious Metal |
| High Light: | high voltage slip ring,digital slip ring |
||

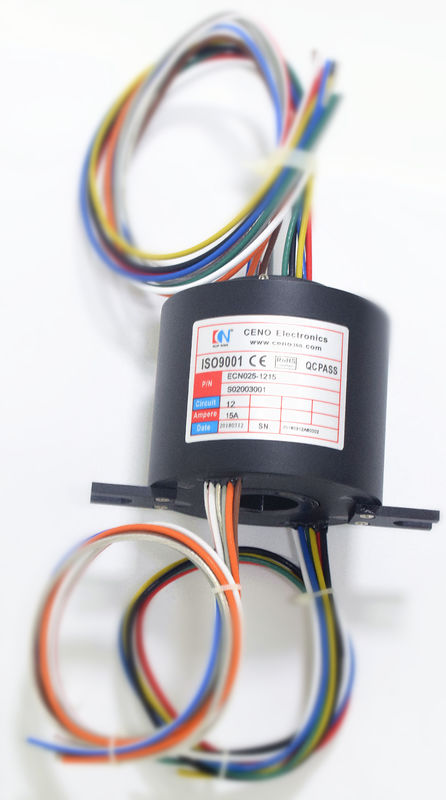

Profi-Bus Slip Ring Multi-Signal And Current Could Be Integrated
Field-bus is an open, fully digital, two-way, multi-station communication system, which has been developed rapidly in recently years.CENO has been developed different kinds of slip ring to meet related requirement.
Profi-Bus Slip Ring can transmit various signals such as RS, NET and other serial port and bus signals,and simultaneously transmit servo motor current and encoder control signals, at the same time,multi-signal and current could be integrated,comply with EMC compatibility, without interference between current and signal
Characteristic
Optional
Application
Specification
| Parameter | |||
| Circuit |
20* 10A,3*port signal 32*Gbe,3*signal |
Protection grade | IP54 |
| Rating voltage | 380VAC | Working temperature | -20°C ~ + 60°C |
| Resistance insulation |
500 MΩ@500VDC(power) 100 MΩ@300VDC(signal) |
Working humidity | 60%RH |
| Dielectric strength |
≥1000V@50hz(power) ≥300 V@50hz(signal) |
Rotating speed | 0~300rpm |
| Resistance fluctuation | 70mΩ | Contact material | Precious metal |
| Diameter | Ø25.4mm | Housing material | Aluminum alloy oxidation white |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
