2 or 4 Channel Flange Connection High Frequency Slip Ring With Single And Multi Mode





This series fiber optic rotary joint slip ring include 2-4 channels, it can be choosed single or multi mode with flange connection and ST,FC,SC this three connector types,it is widely used in naval vessel system,medical equipment and marine industrial equipment .











Features



• Apply to single or multi mode photoelectric rotary connection
• No contact,no friction,long life
• Transmit hundreds kilometer distance





Applications

• Medical equipment
• Radar system
• Naval vessel system



Optional

• Fiber type
• Connector type
• Fiber channel number





Specification

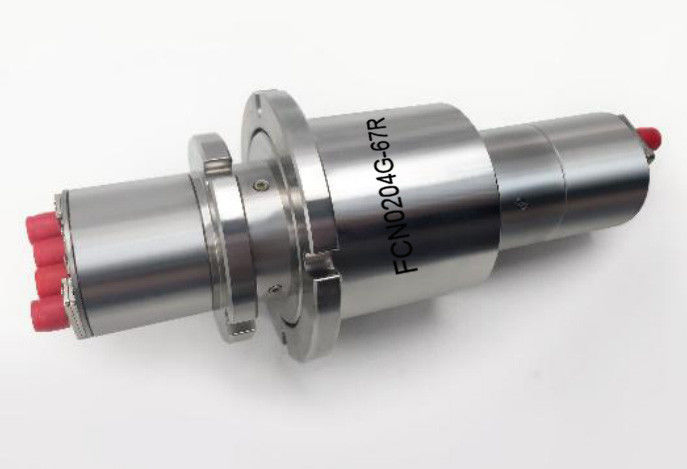

FCN0204G-67R               Specification		Picture
Fiber Type	Single or multi mode
Working Temperature	-20℃~+60℃
Weight	1.6kg
Max Working speed	400rpm
Maximum input power	0.5W
Connector types	ST,FC,SC
Return loss	≥50(APC) or ≥40(PC)
Insertion loss	5dB/1dB







Outline drawing

Q: How does slip ring work?

A: A slip ring is an electrical connection designed to pass the flow of current from a stationary device to a rotating one.This electromechanical device is also known as a rotary electrical connector or rotary electrical joint. Electrical slip rings are free to rotate without limitations, unlike cables which twist and eventually break.In general, conductor rings are mounted on the rotor and terminated with leadwires that run axially through the rotor to one end. Brushes are secured by a brush holder that is mounted to the housing.Electrical slip rings work by holding a sliding contact (brush) against a ring (conductor ring). One part, typically the brush, is stationary while the other, typically the conductor ring, rotates.Electrical components incude the brush, contact ring, and electrical connectors.They are made of precision materials are selected based on requirements such as current size, voltage drop, rotational speed, temperature, resistance variation, bandwidth, and characteristic impedance.

Q: What applications are they used?

A: Typical applications refers revolving automation or control systems such as turntables, index tables, and robots. Wind turbines, semiconductor processing, printing plastic molding, CNC and MRI medical scanners, satellite communications, beverage bottle filling process, and industrial filling machine are also common slip ring applications.

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.

Honor

ISO9001,CE,RoHS,UL,Explosion-proof

Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
