Electrical Through Hole Slip Ring Precious Metals For Signal / Power Rotary Transmission

Electrical Slip Rings Deliver High Quality And Reliable Performance For Signal And Power Rotary Transmission

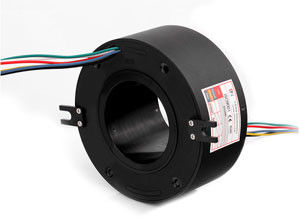

ECN is defined as through bore series slip ring in CENO products.The hole is designed for passing a shaft when mounting it on the target machine.The contact of this series swivel adopts fiber brush technology which make contacts on each ring are multiple points to ensure the safe contact between rings and brushes.

Features

• Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
• Low friction, long life,Low torque, smooth rotation
• Transmit data and analog signal,compatible with data bus protocol

Applications

• Radar antenna ,motion simulator
• Construction engineering
• Robot,package equipment
• Lithium battery equipment

Optional

• Through hole size
• Circuit ,current rating
• Installation way
• IP protection grade


Parameter


ECN080 Specification		Picture
Circuit & current	6,12,18,24 or more & 5A,10A,15A/circuit
Voltage	380VAC
Electrical noise	10 milliohms max
Dielectric strength	≥1000V@50Hz
Insulation resistance	1000MΩ@500VDC
Operating speed	300rpm or higher
Contact material	Precious Metals
Operating temperature	-20~+60℃
Through bore size	80mm
IP protection grade	IP54

Outline drawing


Length

Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.

Honor

ISO9001,CE,RoHS,UL,Explosion-proof

Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.

Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
