Product Details:

Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN-EX-04S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Current: 4*2A IP Protection Grade: IP67
Anti-explosion Grade: EX II2/2G EX Ib Mb/EX Pyb IIC T6 Gb/Gb Electrical Noise: ≤15mΩ(50rpm)
Insulation Resistance: 200MΩ@100VDC Contact Material: Gold To Gold
High Light:

electrical slip ring

,

large slip ring









Low Cost Explosion-proof Slip Rings And Slip Ring Assemblies

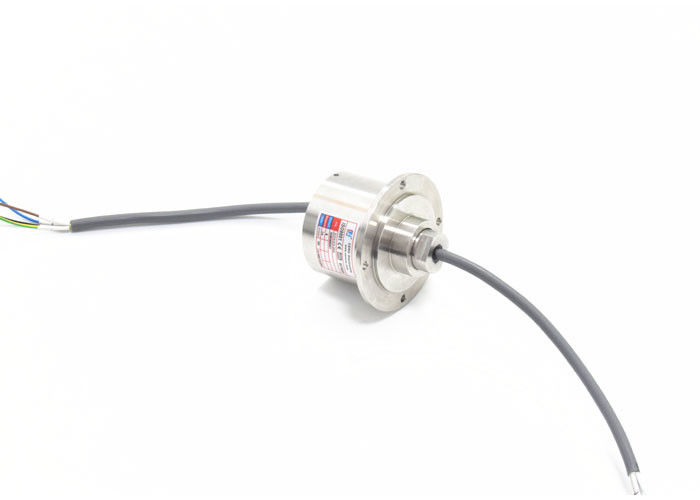

This is explosion-proof slip ring for GPS application,IP protection is IP67,low torque smooth rotation,there are across flats design on rotational shaft for easy fixing rotor part,contact material is gold to gold,housing material is stainless steel,stainless steel body has good environmental suitability. Explosion-proof slip ring has more safety and higher reliability, designed for use in the condition which is easy to explosion.





Specification

ECN-EX-04S  Picture
Current 4*2A Explosion Proof Electrical Slip Rings Assemblies IP67 Low Torque Smooth Rotation 0
Voltage 0~18VAC/VDC
Electrical noise ≤15mΩ(50rpm)
Dielectric strength ≥300V@50Hz
Insulation resistance 200MΩ@100VDC
Operating speed 0-50 rpm
Contact material gold to gold
Operating temperature -20~+60℃
Anti-explosion grade EX II2/2G EX ib mb/EX pyb IIC T6 Gb/Gb
IP protection grade IP67





Features

  • Low torque,smooth rotation
  • Support data and analog signal mixed transmission
  • Explosion certification is available



Applications

  • Global Position System
  • Spraying equipment
  • Oil platform



Optional

  • Circuit number
  • Current rating
  • Installation way
  • IP protection grade





Outline Drawing

Explosion Proof Electrical Slip Rings Assemblies IP67 Low Torque Smooth Rotation 1









Why with CENO



CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Explosion Proof Electrical Slip Rings Assemblies IP67 Low Torque Smooth Rotation 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Explosion Proof Electrical Slip Rings Assemblies IP67 Low Torque Smooth Rotation 4



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
