Thickness 3mm Flat Pancake Slip Ring Precious Metal Display Case Application

Thickness 3mm Flat Pancake Slip Ring Precious Metal Display Case Application

    • Thickness 3mm Flat Pancake Slip Ring Precious Metal Display Case Application
  • Thickness 3mm Flat Pancake Slip Ring Precious Metal Display Case Application

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,UL,ISO9001
    Model Number: PSCN020-02P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 2 weeks
    Payment Terms: T/T,Paypal,Western Union
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Current: 2*3A Voltage: 0~24 VAC/VDC
    Dielectric Strength: ≥300VAC@50Hz Insulation Resistance: 300MΩ@300VDC
    Working Temperature: -20℃~+60℃ Inner Diameter: Ø20mm
    High Light:

    flat slip ring

    ,

    platter slip ring









    Thickness 3mm Flat Slip Ring ID Ø20mm For Display Case Application



    The separate slip ring also called two half style slip ring,consists of separated rotor and contact brush,with many features, low resistance,easy to install, simplify system design, eliminate possible damage while rotation, suitable for small space etc.









    Specification

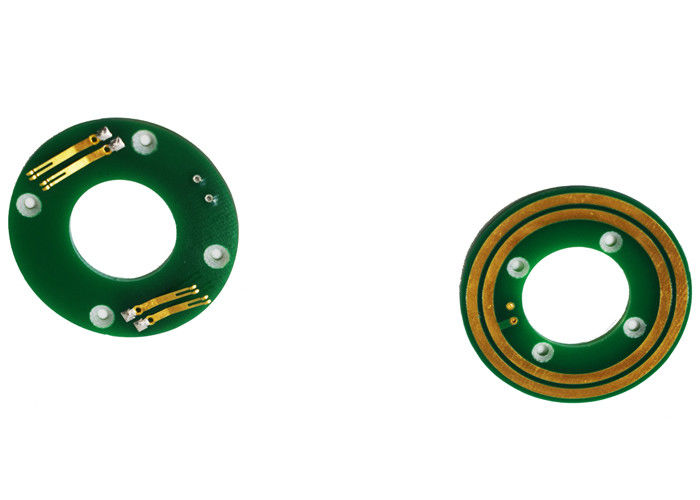

    PSCN020-02P  Picture
    Current 2*3A Thickness 3mm Flat Pancake Slip Ring Precious Metal Display Case Application 0
    Rating voltage 0~24 VAC/VDC
    Dielectric strength ≥300VAC@50Hz
    Insulation resistance 300MΩ@300VDC
    Electrical noise ≤30mΩ (50rpm)
    Working speed 0~3rpm
    Contact material precious metal
    Housing material FR-4
    Working temperature -20℃~+60℃
    Working humidity 60%RH
    Inner diameter Ø20mm






    Outline drawing

    Thickness 3mm Flat Pancake Slip Ring Precious Metal Display Case Application 1





    Reduce costs
    Improve manufacturing efficiency. You asked, we delivered.CENO Electronics offers high-performance 360° rotation solutions,
    refined over years of helping customers with thousands of system designs in hundreds of industries.







    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.





    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
