25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC

25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC

    • 25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC
    • 25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC
    • 25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC
    • 25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC
  • 25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,UL,ISO9001
    Model Number: ECN025-20S-02EG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: Off the shelf
    Payment Terms: T/T,Paypal,Western Union
    Supply Ability: 10000pcs month
    Contact Now
    Detailed Product Description
    Current Rating: 20*signal, 2*group 1000M Ethernet Voltage: 0~380VAC/VDC
    Contact Material: Precious Metals Electrical Noise: ≤30mΩ(50rpm)
    Operating Speed: 0-300 Rpm Through Bore Size: 25.4mm
    High Light:

    cable slip ring

    ,

    electrical swivel joint











    25.4mm Bore Size Ethernet Wire Slip Ring 2 Group Gigabit No String Code



    Ethernet slip ring specially designed for 250Mhz frequency to transmit 100M/1000M Ethernet signals,with advantages of reliable transmitting ,no packet loss,no string code ,low return loss,low insertion loss, Ethernet slip ring also known as RJ45 slip ring.








    Specification

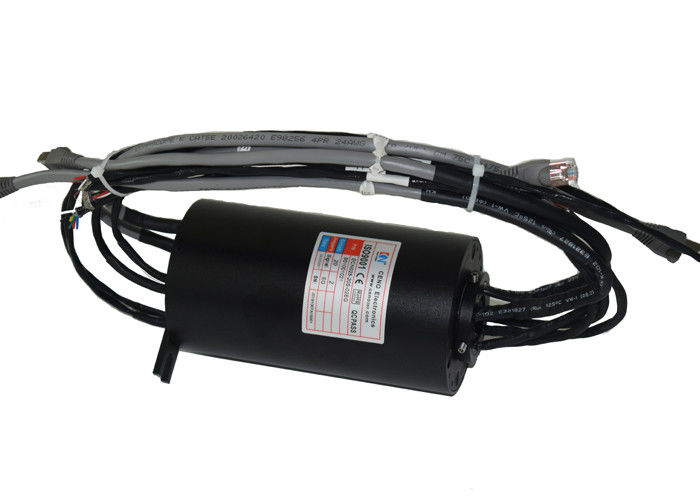

    ECN025-20S-02EG  Picture
    Current 20*signal, 2*group 1000M Ethernet 25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC 0
    Voltage 0~380VAC/VDC
    Electrical noise ≤30mΩ(50rpm)
    Dielectric strength

    ≥1500V@50Hz(power)

    ≥300V@50Hz(signal)

    Insulation resistance

    ≥500MΩ@500VDC(power)

    ≥100MΩ@100VDC(signal)

    Operating speed 0-300 rpm
    Contact material precious metals
    Operating temperature -20~+60℃
    Through bore size 25.4mm
    IP protection grade IP54







    Optional

    • Circuit number
    • Current rating
    • IP protection grade
    • Through hole size



    Features

    • Can combine with power or pneumatic/hydraulic slip ring
    • Low return loss ,low insertion loss
    • No packet loss,no string code



    Applications

    • Amusement equipment
    • Industrial application
    • CCTV video monitor





    Outline Drawing



    25.4mm Bore Size Ethernet Slip Ring 2 Group Gigabit No String Code 0~380VAC/VDC 1





    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.





    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
