Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces

Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces

Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces
Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces

Product Details:

Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-12P2-01PE

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Current: 12*10A,1*PE Voltage: 415VAC
Electrical Noise: ≤30mΩ (50rpm) Protection Grade: IP65
Contact Material: Precious Metals Housing Material: Aluminum Alloy
High Light:

electrical slip ring

,

large slip ring









Weatherproof And Dust Prevention Rotary Electrical Interfaces

This is high protection rotary joint for food machinery, there are 12 circuits transferring power or signal with one circuit for PE.it adopts advanced fiber brush multipoint contact, low friction,long life.when the cover is correctly

sealed,it can use for dust prevention and weatherproofed to IP65,housing material is aluminum alloy,mounting flanges can be designed to suit customer's requirements,and ATEX compliant is optional, this power slip ring can

integrate Fiber,RF,pneumatic,hydraulic etc.









Specification

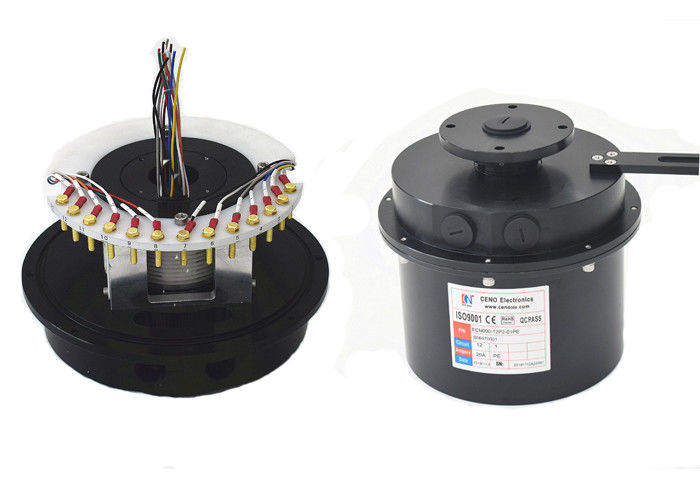

ECN000-12P2-01PE Picture
Current 12*10A,1*PE Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces 0
Voltage 415VAC
Electrical noise ≤30mΩ (50rpm)
Dielectric strength ≥1500V@50Hz
Insulation resistance 500MΩ@500VDC
Operating speed 0-20 rpm
Contact material precious metals
Housing material aluminum alloy
Operating temperature -20~+60℃
IP protection grade









Features

  • Easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • Low friction, long life,low torque, smooth rotation
  • Fiber brush multipoint contact



Applications

  • Food machinery
  • Construction engineering
  • Industrial automation equipment


Optional

  • ATEX compliant
  • Current rating
  • Installation way
  • IP protection grade





Outline Drawing



Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces 1





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Low Friction 415VAC Waterproof Slip Ring Dust Prevention Rotary Electrical Interfaces 4



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
