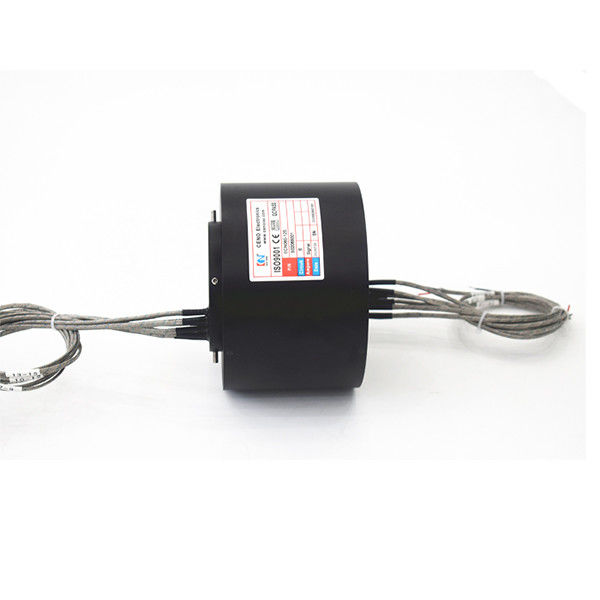

Low Torque Smooth Rotation 60mm Through Hole Slip Ring

Low Torque Smooth Rotation 60mm Through Hole Slip Ring

  • Low Torque Smooth Rotation 60mm Through Hole Slip Ring
Low Torque Smooth Rotation 60mm Through Hole Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN060-12S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/Crate
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000pcs month
Contact Now
Detailed Product Description
Current: 6*K Type Thermocouple Signal Voltage: 0~380VAC
Electrical Noise: ≤30mΩ(50rpm) IP Grade: IP54
Work Speed: 0-300 Rpm Through Bore Size: 60mm
High Light:

miniature through bore slip ring

,

thermocouple slip ring







Electrical Slip Ring Commutator Low Torque Smooth Rotation



Slip rings are electromechanical devices that permit the transmission of power or electrical signals between stationary and rotating structures or equipment. These devices are used in electromechanical systems that require continuous rotation while transmitting power/signals and can improve performance, simplify operation, and eliminate potentially dangerous wires that might otherwise protrude from movable joints.





Specification



ECN060-12S
Current 6*K type thermocouple signal
Voltage 0~380VAC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength ≥300V@50Hz
Insulation resistance 100MΩ@100VDC
Operating speed 0-300 rpm
Contact material precious metals
Operating temperature -20~+60℃
Through bore size 60mm
IP protection grade IP54





Features

  • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • Low friction, long life,low torque, smooth rotation
  • Transmit data and analog signal,compatible with data bus protocol



Applications

  • Radar antenna
  • Construction engineering
  • Package equipment
  • Lithium battery equipment


Optional

  • Through hole size
  • Circuit number
  • Current rating
  • Installation way
  • IP protection grade


Outline drawing



Low Torque Smooth Rotation 60mm Through Hole Slip Ring 0





Application

Low Torque Smooth Rotation 60mm Through Hole Slip Ring 1



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.



Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
