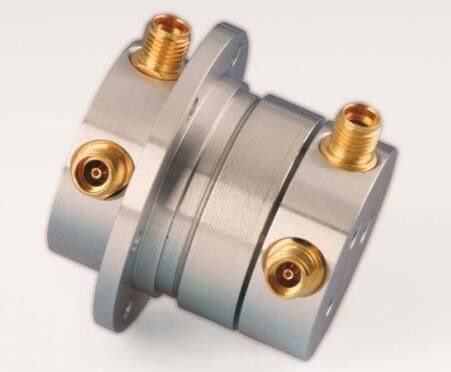

2 Channel Coaxial Slip Ring 4.5GHz Radio Frequency Rotary Joint

2 Channel Coaxial Slip Ring 4.5GHz Radio Frequency Rotary Joint

  • 2 Channel Coaxial Slip Ring 4.5GHz Radio Frequency Rotary Joint
2 Channel Coaxial Slip Ring 4.5GHz Radio Frequency Rotary Joint
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: RCN02-04-04
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: T/T,Paypal,, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Channel Number: 2 Frequency: DC To 4.5 GHz
Interface Type: SMA Interface Orientation: Style U
Body Material: Aluminum Alloy Peak Power,max: 1KW
High Light:

rf coaxial rotary joint

,

rf rotary joint slip ring







2 Channel Coaxial Slip Ring 4.5GHz Radio Frequency Signal



CENO's RF rotary joint belongs RCN series. RF rotary joint design adopts the principle of skin effect of high frequency signal and the structure simulation of coaxial cable. To ensure RF rotary joint with the high frequency signal low damage and reliable transmission,CENO uses import high elastic wear-resisting material in the internal key contact point of the RF rotary joint and do special plating in the surface for it. It is a connector device to transmit high frequency signal from the static to rotating part.







Specification

RCN02-04-04
Channel number Channel 1 Channel 2
Frequency range DC to 4.5 GHz DC to 4.5 GHz
Interface type SMA SMA
Interface orientation Style U Style U
Insertion loss,max 0.4dB 0.6dB
Insertion loss,WOW,max 0.05dB 0.25dB
Rotating speed,max 60rpm/30rpm
Peak power,max 1KW
Working temperature -40℃~-+71℃
weight 0.13kg
Body material Aluminum alloy





Features

  • Stable performance and high reliability
  • Integrated RF rotary joint
  • Apply to RF signal and high data speed rate transmission



Applications

  • Simulation tester
  • Antenna system
  • Traffic control system


Optional

  • Gas-liquid rotary joint size
  • Circuit number
  • Installation way
  • Radio frequency range





Outline Drawing

2 Channel Coaxial Slip Ring 4.5GHz Radio Frequency Rotary Joint 0





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

2 Channel Coaxial Slip Ring 4.5GHz Radio Frequency Rotary Joint 1





Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
