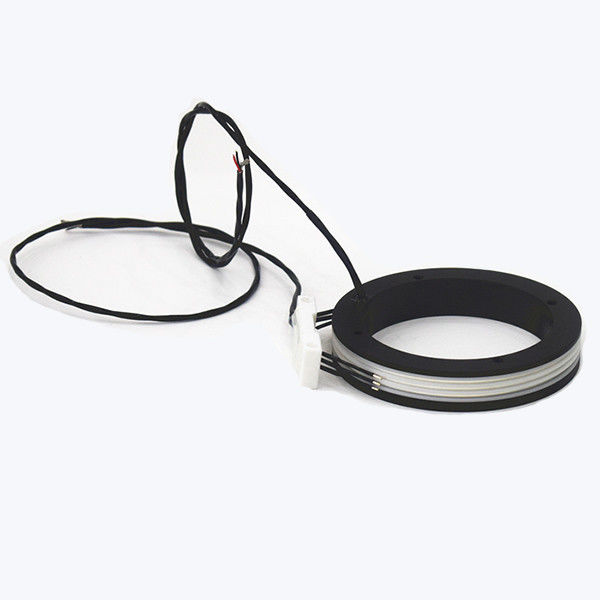

Precious Metals Two Half Style 90mm Electrical Slip Ring

Precious Metals Two Half Style 90mm Electrical Slip Ring

  • Precious Metals  Two Half Style 90mm Electrical Slip Ring
Precious Metals  Two Half Style 90mm Electrical Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001
Model Number: SCN090-03S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Crate/As request
Delivery Time: 2 weeks
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Current: 1 Group 485 Signal Voltage: 0~220VAC
Contact Material: Precious Metals Operating Temperature: -20~+60℃
Electrical Noise: ≤30mΩ(50rpm) Through Bore Size: 90mm
High Light:

slip ring carbon brushes

,

custom slip ring









ID 90mm Two Half Style Slip Ring



This two half style slip ring is also called separate slip ring, extremely thin ,low resistance,easy to install, simplify system designed. copper ring and brush contact surround a central hole, which saves space a lot. ID size is 90mm.it is widely used for marine engineering equipment,transmit 485 signal.







Specification



SCN090-03S
Current 1 group 485 signal
Voltage 0~220VAC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength ≥300V@50Hz
Insulation resistance 100MΩ@100VDC
Operating speed 0-200 rpm
Contact material precious metals
Operating temperature -20~+60℃
Through bore size 90mm
Housing material Aluminum alloy





Features

  • Easy to install,low electrical noise
  • Low torque, smooth rotation
  • Power & signal can be combined to deliver in one body





Optional

  • Through hole size
  • Circuit number
  • Current rating
  • Installation way



Applications

  • Marine engineering equipment
  • Ferris wheel
  • Industrial application



Outline Drawing



Precious Metals  Two Half Style 90mm Electrical Slip Ring 0



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field. Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
