Aviation Plugs IP51 24VAC 20rpm Radar Antenna Slip Ring

Aviation Plugs IP51 24VAC 20rpm Radar Antenna Slip Ring

Aviation Plugs IP51 24VAC 20rpm Radar Antenna Slip Ring
Aviation Plugs IP51 24VAC 20rpm Radar Antenna Slip Ring

Product Details:

Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN065-08P-12S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Current: 4*25A,2*40A,12*1A Signal Rating Voltage: 24VAC
Working Speed: 0-20 Rpm Protection Grade: IP51
Diameter: Ф65 Contact Material: Precious Metals
High Light:

24VAC Radar Antenna Slip Ring

,

20rpm Radar Antenna Slip Ring

,

Aviation Plugs Power Slip Rings













Radar Antenna Slip Ring With Aviation Plugs

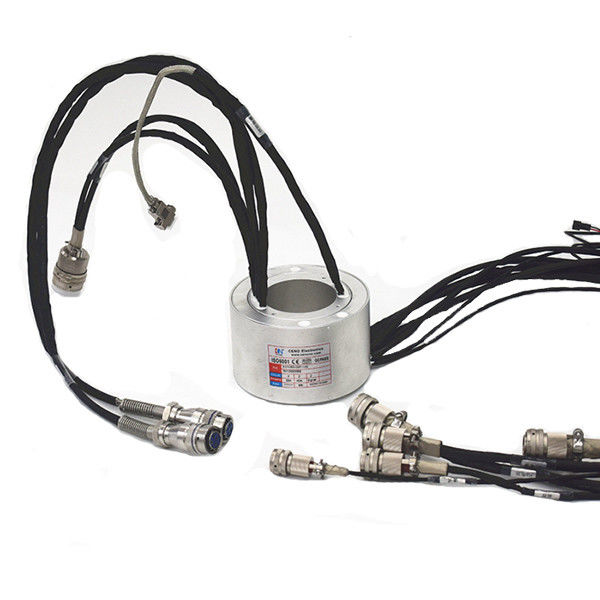

This slip ring is designed for radar antenna.Aviation plugs at the cable end simplify the connection and make the connection between cable and equipment is uniquely.Its through hole 65mm allows any shaft with diameter smaller than

this size pass through.







Specification



ECN065-08P-12S
Current 4*25A,2*40A,12*1A signal
Voltage 24VAC
Electrical noise ≤20mΩ(50rpm)
Dielectric strength >200V@50Hz
Insulation resistance ≥200MΩ@200VDC
Operating speed 0-20 rpm
Contact material precious metals
Operating temperature -40~+65℃
Through bore size 65mm
IP protection grade IP51





Application



  • Radar antenna
  • Industrial application
  • Automation equipment





Features

  • Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • Low friction, long life,low torque,smooth rotation
  • Aviation plugs instead of traditional wires to transmit current and signals




Optional

  • Through hole size
  • Circuit number
  • Current rating
  • Installation way



Outline Drawing

Aviation Plugs IP51 24VAC 20rpm Radar Antenna Slip Ring 0









Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Aviation Plugs IP51 24VAC 20rpm Radar Antenna Slip Ring 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Aviation Plugs IP51 24VAC 20rpm Radar Antenna Slip Ring 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
