FC Connector IP65 50rpm SM MM Fiber Optic Rotary Joint

IP65 Fiber Optic Rotary Joint Low Inertion Loss

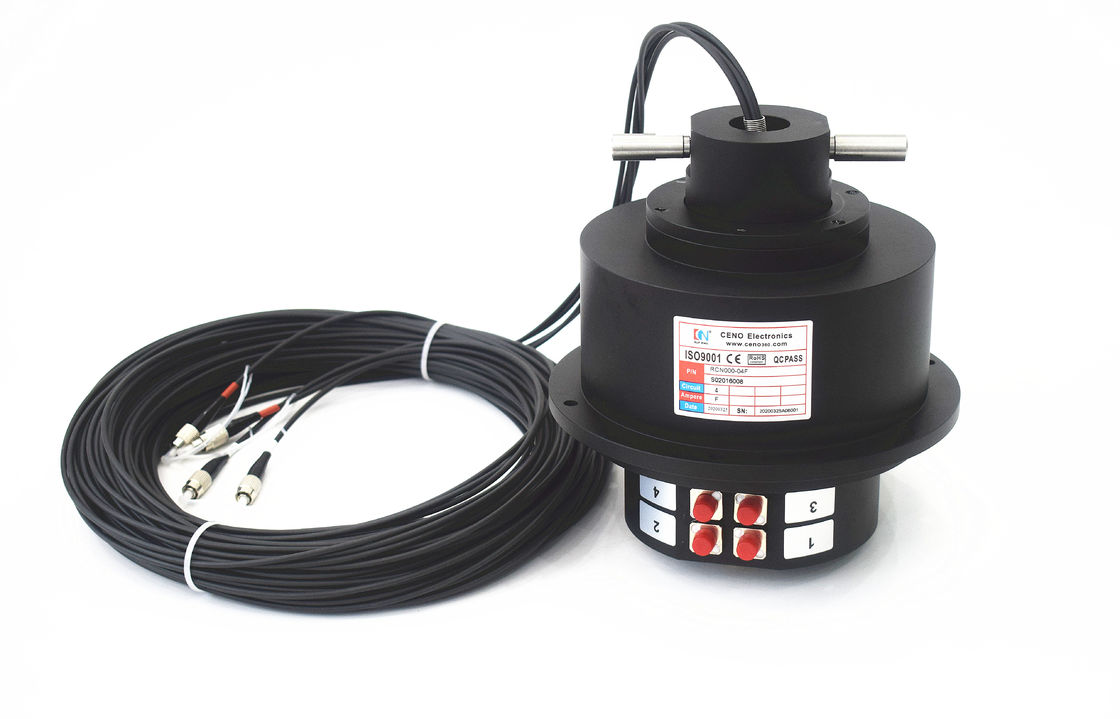

This is fiber optic rotary joint designed for petrol drilling platform.It has 4 channels,two single mode and two multi mode.

Stator side adopts FC female socket(with dust cover) without cable and it simplifies the connection between equipment

and rotary joint.Fiber optical cables come out from rotor side solved the mounting distance issue. Protection grade is IP65.

Specification

Optional

• Fiber channel number
• Connector type
• Fiber type
• Fiber length

Features

• SM or MM fiber type
• Transmit signal via fiber optic,no EMI
• Convenient to integrate power slip ring

Applications

• Offshore equipment
• Simulator tester
• Petrol drilling platform
• Marine Winch

Outline Drawing


Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.

Honor

ISO9001,CE,RoHS,UL,Explosion-proof

Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.

Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
