| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | HG50160F-6P-23S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 6*25A,4*2A,3*5A.2*CAT5e | Through Bore Size: | 50 |
|---|---|---|---|
| Protection Grade: | IP65 | Working Speed: | 0~12rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 0~220VAC/VDC |
| High Light: | Rotary Table Waterproof Slip Ring,IP65 Waterproof Slip Ring,Through Hole 50mm Slip Ring |
||

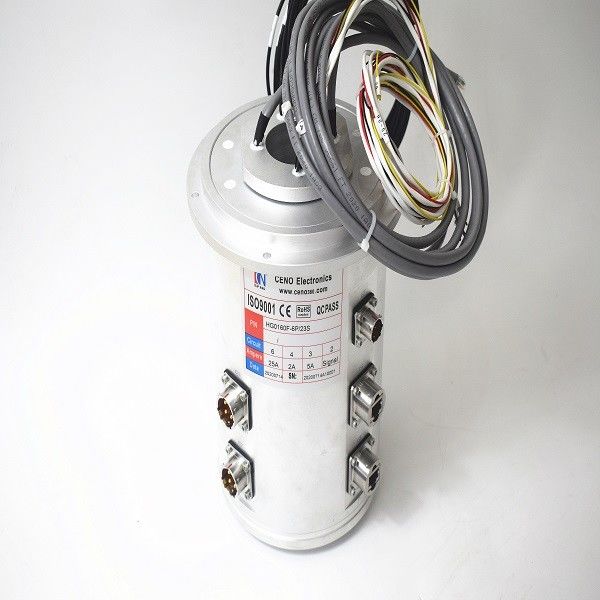

Waterproof slip ring for rotary table
This is waterproof slip ring for Rotary table,its outstanding advantage is that IP protection grade IP65,through hole size is 50mm,6*25A,4*2A,3*5A.2*CAT5e .it can work in special environment of moisture, corrosion and underwater. the waterproof slip ring could be divided into multiple protection grade, such as IP65,IP67,IP68 and so on. The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water, oil etc .
Specification
| Rings | 6*25A,4*2A,3*5A.2*CAT5e |
| Voltage | 0~220VAC/VDC |
| Electrical noise | ≤10mΩ(50rpm) |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-12 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy sandblasted oxidized white |
| IP protection grade | IP65 |
| Working temperature | -20°C~+70°C |
| Through hole size | 50 mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
