| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | SCN-04S-ZZ / SCN-04S-DZ |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits: | 4*1A | Through Bore Size: | 140 Mm |
|---|---|---|---|
| Working Speed: | 0~300rpm | Contact Material: | Gold To Gold |
| Rating Voltage: | 0~380VAC/VDC | ||
| High Light: | 300rpm Separate Slip Ring,140mm Separate Slip Ring,380VDC Two Half Slip Ring |
||

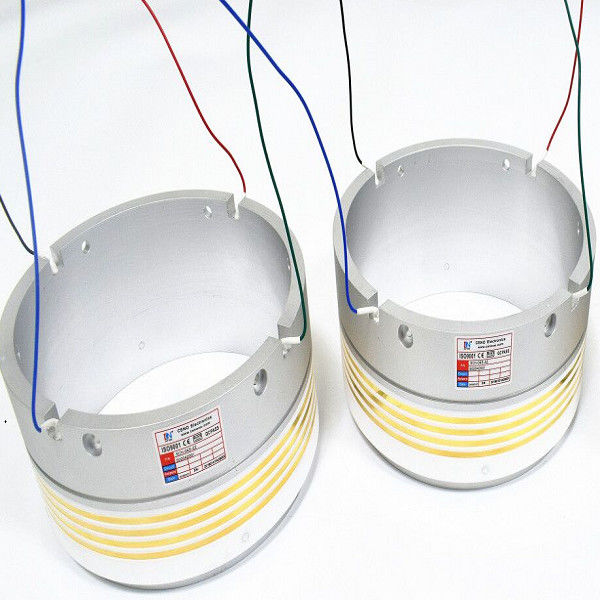

Two half style slip ring,high temperature 175°C.
This two half style slip ring is also called separate slip ring, there are 4 gold plating rings on the rotor,four conduct pins instead of lead wire,the hole size is 140mm.It’s can bear high temperature 175°C.
Specification
| SCN-04S-ZZ/DZ | |
| Rings | 4*1A |
| Voltage | 0~380VDC |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Working temperature | 175°C |
| Contact material | Gold to gold |
| Through hole size | 140 mm |
Features
Applications
Optional
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
