| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | QCN0102-03P |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits: | 3*25A,1 Channel*water (G1/4’’) | Protection Grade: | IP65 |
|---|---|---|---|
| Working Speed: | 0~100rpm | Contact Material: | Precious Metal |
| Rating Voltage: | 0~380VAC/VDC | ||
| High Light: | 4MPa Gas Liquid Rotary Joint,IP65 Gas Liquid Rotary Joint,100rpm Gas Liquid Rotary Union |
||

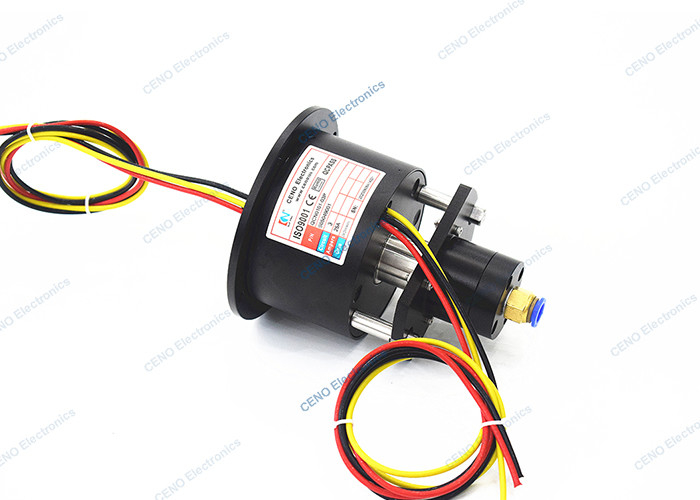

Gas-liquid rotary joint
The gas-liquid rotary joint is used specially transmitting gas and liquid media, mainly including compressed air, hydrogen, nitrogen, water, oil, coolant and so on.Light weight, compact size,one air flow passage rotary union with aluminum alloy construction, interface G1/4'', rotor side is fixed by flange, stator side is fixed by anti-rotation tab.Typical application including automatic equipment,machinery manufacturing ,food processing etc.
Specification
| QCN0101-30S | |
| Current | 3*25A |
| Voltage | 0~380VAC/VDC |
| Electrical noise | ≤10mΩ(50rpm) |
| Dielectric strength | ≥1500V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-100 rpm |
| Contact material | Precious metals |
| Housing material | Aluminum alloy,stainless steel |
| Air channel | 1 channel*water (G1/4’’) |
| Pressure | ≤4MPa |
Features
Applications
Optional
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
