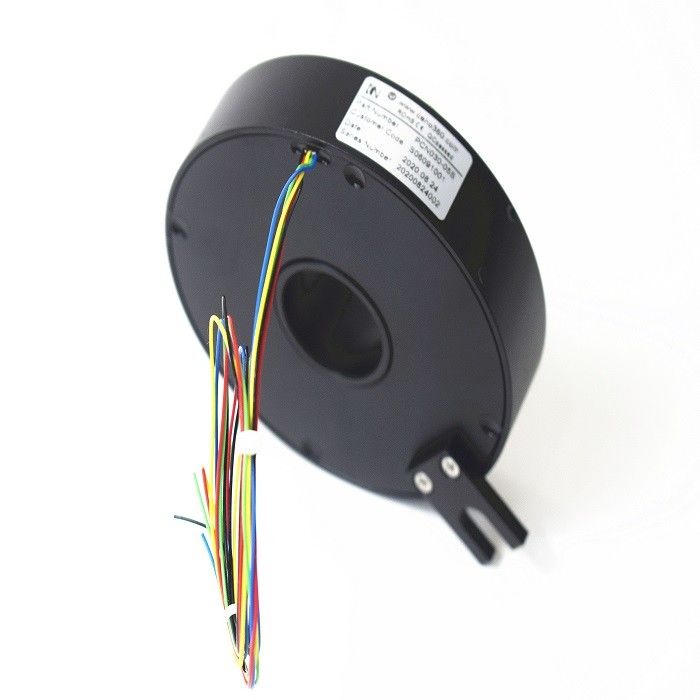

Military Equipment 12VAC IP40 8mm Pancake Slip Ring

Military Equipment 12VAC IP40 8mm Pancake Slip Ring

  • Military Equipment 12VAC IP40 8mm Pancake Slip Ring
Military Equipment 12VAC IP40 8mm Pancake Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: PCN030-05S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 5*0.2A Through Bore Size: 30 Mm
Protection Grade: IP40 Working Speed: 0~60rpm
Contact Material: Gold To Gold Rating Voltage: 0~12VAC/VDC
Housing Material: Aluminium Alloy
High Light:

8mm Pancake Slip Ring

,

60rpm Pancake Slip Ring

,

12VAC Pancake Slip Ring

Military Equipment 12VAC IP40 8mm Pancake Slip Ring



Pancake slip ring is as another form of though hole slip rings. CENO's pancake slip rings are designed for some equipment which vertical space is limited while horizontal space is less restrictive.This type slip ring provides ultrathin thickness for special limited installation space.Thickness could be up to 4mm.This kind pancake slip ring design with through hole or no hole are optional.



Specification

PCN030-05
Rings 5*0.2A
Voltage 0~12VAC/VDC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥300V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 0-60 rpm
Contact material Gold to gold
Housing material Aluminium alloy
IP protection grade IP40
Through hole size 30 mm



Features

  • Extremely thin,save space
  • Separate rotor and stator



Applications

  • Military equipment
  • Medical equipment
  • 3D total station



Optional

  • Lead wire length
  • Installation way
  • Current rating
  • Inner diameter



Outline Drawing



Military Equipment 12VAC IP40 8mm Pancake Slip Ring 0



Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
