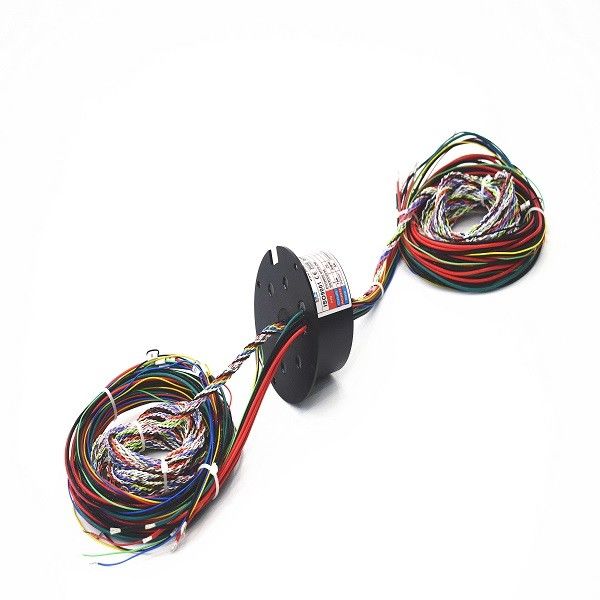

Compact IP54 16Mm Capsule Slip Ring For Signal Transmission

Compact IP54 16Mm Capsule Slip Ring For Signal Transmission

  • Compact IP54 16Mm Capsule Slip Ring For Signal Transmission
  • Compact IP54 16Mm Capsule Slip Ring For Signal Transmission
Compact IP54 16Mm Capsule Slip Ring For Signal Transmission
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN000-07P3-29S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union, L/C
Supply Ability: 10000pcs month
Contact Now
Detailed Product Description
Current: 24*signal Voltage: 0~220VAC/VDC
OD: Φ16 Mm Electrical Noise: 35m Ω Max
Contact Material: Gold To Gold Protection Grade: IP54
Housing Material: Aluminium Alloy Operating Speed: 0~300 Rpm
High Light:

16Mm Capsule Slip Ring

,

IP54 Capsule Slip Ring

,

220VAC Capsule Slip Ring

Compact IP54 16Mm Capsule Slip Ring For Signal Transmission



Capsule slip ring with aluminium alloy housing for signal transmission,used for military equipment



CENO's capsule slip rings have flexible spec options to fulfill the various and complex requirement of systems.Ring number are range from 2 rings up to 200 rings.Power and signal are easily to be integrated into one slip rings under our years of proven technique.Outstanding signal types are Ethernet,Canbus,Profibus,RS,HDMI,HD-SDI,USB and so on. Typical outside diameters including 5.5mm,12.4mm,22mm.


Specification

Circuits 24*signal
Voltage 0~220VAC/VDC
Electrical noise ≤35mΩ
Dielectric strength ≥500V@50Hz
Insulation resistance ≥50MΩ@500VDC
Operating speed 0-300 rpm
Contact material Gold to gold
Housing material Aluminium alloy
IP protection grade IP54



Applications

  • Radar system
  • Military equipment
  • Medical equipment
  • Industrial automation equipment
  • Wind power equipment
  • Test equipment



Features

  • Compact size.
  • Adopt military grade surface treatment,gold to gold contacts
  • Transmit data and analog signal,compatible with bus protoco



Optional

  • Circuit number
  • Lead wire length
  • Operating speed
  • IP protection grade



Outline drawing



Compact IP54 16Mm Capsule Slip Ring For Signal Transmission 0



Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
