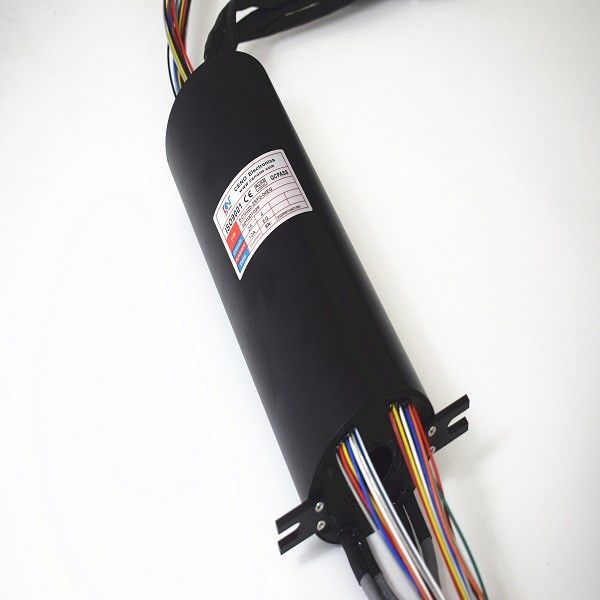

Drilling Platform Aluminium Alloy 300rpm Ethernet Slip Ring

Drilling Platform Aluminium Alloy 300rpm Ethernet Slip Ring

  • Drilling Platform Aluminium Alloy 300rpm Ethernet Slip Ring
  • Drilling Platform Aluminium Alloy 300rpm Ethernet Slip Ring
Drilling Platform Aluminium Alloy 300rpm Ethernet Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN025-25P2-04EG
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 25*10A,4*Cat5e Through Bore Size: 25.4mm
Protection Grade: IP54 Working Speed: 0~300rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC/VDC
Housing Material: Aluminium Alloy Sandblasted Black Oxide Application: Drilling Platform
High Light:

200rpm Ethernet slip ring

,

100rpm Ethernet slip ring

,

10rpm Ethernet slip ring

Drilling Platform Aluminium Alloy 300rpm Ethernet Slip Ring

Gigabit Ethernet slip ring with aluminium alloy for drilling platform,test machine

Inner diameter 25.4 mm with Ethernet slip ring, CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps,or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement.

Specification



Rings 25*10A,4*Cat5e
Voltage 380VAC/24VDC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)
≥300V@50Hz(signal)

Insulation resistance

≥500MΩ@500VDC(power)
≥100MΩ@500VDC(signal)

Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy sandblasted black oxide
IP protection grade IP54
Through hole size 25.4 mm


Features

  • Transmit 100M/1000M Ethernet signal.
  • Transmit stably, no package loss,no cross talk, low loss.
  • Integrate multi-signal and current.



Applications

  • Automation machinery
  • Simulation test equipment
  • Drilling platform
  • Amusement equipment
  • High-speed railway equipment
  • Ship offshore equipment


Optional

  • Through hole size
  • Signal type
  • Current rating
  • IP protection grade


Outline Drawing
Drilling Platform Aluminium Alloy 300rpm Ethernet Slip Ring 0

Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
