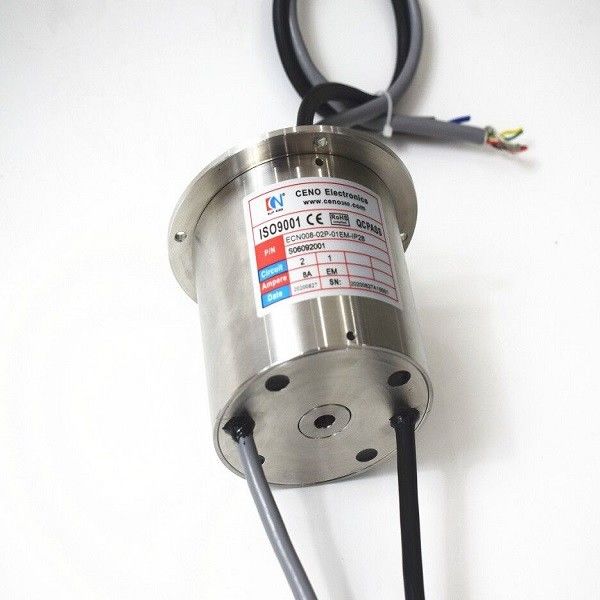

Stainless Steel 316 220VAC IP68 Waterproof Slip Ring

Stainless Steel 316 220VAC IP68 Waterproof Slip Ring

  • Stainless Steel 316 220VAC IP68 Waterproof Slip Ring
  • Stainless Steel 316 220VAC IP68 Waterproof Slip Ring
Stainless Steel 316 220VAC IP68 Waterproof Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN008-02P-01EM-IP68
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 2*8A,1*100M Ethernet Through Bore Size: 8 Mm
Protection Grade: IP68 Working Speed: 0~50rpm
Contact Material: Precious Metal Rating Voltage: 0~220VAC/VDC
Housing Material: Stainless Steel 316 Typical Application: Drilling Platform & Oil Well
High Light:

IP68 Waterproof slip ring

,

220VAC Waterproof slip ring

,

IP68 slip ring

Stainless Steel 316 220VAC IP68 Waterproof Slip Ring



It’s a waterproof slip ring with protection grade IP68 ,combine with 100M Ethernet and power.The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water, oil etc.CENO's water-proof slip ring is designed for ships, harbor equipment,test equipment and some application which has water or moisture environment.



Specification

Rings 2*8A,1*100M Ethernet
Voltage 0~220VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)

≥300V@50Hz(signal)

Insulation resistance

≥500MΩ@500VDC(power)

≥100MΩ@300VDC(signal)

Operating speed 0-50 rpm
Contact material Precious metal
Housing material Stainless steel 316
IP protection grade IP68
Through hole size 8 mm



Features

  • IP Protection reach to IP68
  • High pressure resistant,anti-corrosion
  • Could work under water 1000M
  • Very low electric noise
  • Anti-jamming ,very low cost
  • Very low contact resistance (Less than 1mΩ)
  • No maintenance and better reliability than traditional sling rings



Applications

  • Beer machinery
  • Filling machinery
  • Drilling platform & oil well
  • Ship offshore equipment
  • Marin application
  • Turntable equipment

  • Food machine



Optional

  • Through hole size
  • Current rating
  • Ethernet type
  • IP protection grade



Outline Drawing





Stainless Steel 316 220VAC IP68 Waterproof Slip Ring 0



Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
