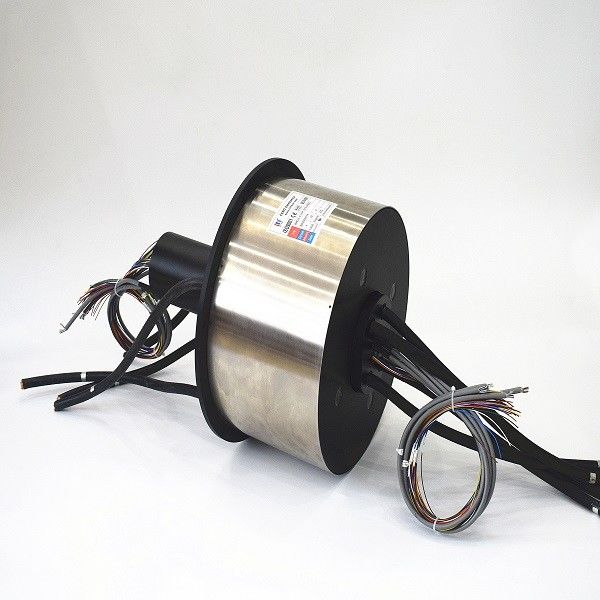

Stainless Steel Aluminium 380VAC High Amp Slip Ring

Stainless Steel Aluminium 380VAC High Amp Slip Ring

    • Stainless Steel Aluminium 380VAC High Amp Slip Ring
    • Stainless Steel Aluminium 380VAC High Amp Slip Ring
  • Stainless Steel Aluminium 380VAC High Amp Slip Ring

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: BHCN-C-04P-32S-04EG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Cartons/As request
    Delivery Time: 1 weeks
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Rating Voltage: 0-380VAC;0-220VAC/VDC Operating Speed: 0-50rpm
    Maintainability: Regular Maintenance Contact Material: Copper Graphite (power) Precious Metal (signal)
    Housing Material: Stainless & Aluminium IP Degree: IP54
    Circuits: 4*150A,32*signal,4*GB Ethernet Application: Marine Crane,Propulsion,Engineering Machinery
    High Light:

    380VAC High Amp Slip Ring

    ,

    IP54 High Amp Slip Ring

    ,

    220VAC High Amp Slip Ring

    Stainless Steel Aluminium 380VAC High Amp Slip Ring





    High Current Slip Ring 4*150A With Stainless Steel & Aluminium Housing,for Marine crane,Engineering machinery



    CENO's carbon brush slip ring is also named as large current collector or high power slip ring, which could transmit the current at least on 100A or above. It widely be used in ship machinery, engineering machinery, port machinery, offshore crane, cable reel, propeller,as well as drilling platform.



    Any requirement, please feel free to contact us ,and we will recommend the most suitable product to you.







    Features

    • Integrate encoder ,fiber optical and RF rotary joint design is optional

    • Support analog signal and data signal mixed transmission

    • Long lifespan, easy maintenance

    • High protection, good weather resistance

    • Various signal type could be integrated





    Applications

    • Platform crane ,vessel crane

    • Cable reel ,seaport machinery

    • Drilling platform

    • Marine crane

    • Propulsion

    • Material delivery equipment

    • Engineering machinery







    Optional

    • Voltage

    • Current rating

    • Signal type

    • Circuit number

    • Protection grade

    • Cable length





    Product details



    BHCN-C-04P-32S-04EG

    Circuits

    4*150A,32*signal,4*GB Ethernet

    Voltage

    0-380VAC;0-220VAC/VDC

    Electrical noise

    ≤10mΩ(50rpm power)

    ≤30mΩ(50rpm signal)

    Dielectric strength

    ≥1500V@50Hz (power)

    ≥500V@50Hz (signal)

    Insulation resistance

    ≥500MΩ@500VDC (power)

    ≥300MΩ@300VDC (signal)

    Contact material

    Copper graphite (power)

    Precious metal (signal)

    Operating speed

    0~50rpm

    Operating temperature

    -20°C~+60°C

    Housing material

    Stainless & Aluminium

    IP protection grade

    IP54





    Outline drawing





    Stainless Steel Aluminium 380VAC High Amp Slip Ring 0







    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.



    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Stainless Steel Aluminium 380VAC High Amp Slip Ring 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Stainless Steel Aluminium 380VAC High Amp Slip Ring 3



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.



    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
