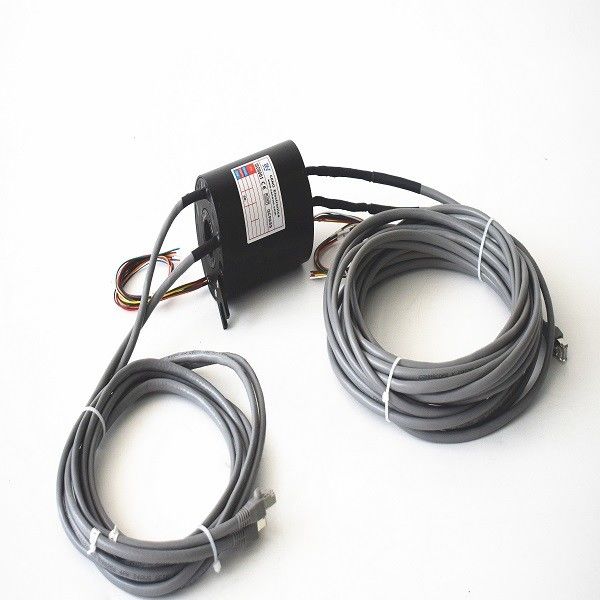

300rpm 25.4mm Through Bore 1000M Ethernet Slip Ring

300rpm 25.4mm Through Bore 1000M Ethernet Slip Ring

    • 300rpm 25.4mm Through Bore 1000M Ethernet Slip Ring
    • 300rpm 25.4mm Through Bore 1000M Ethernet Slip Ring
  • 300rpm 25.4mm Through Bore 1000M Ethernet Slip Ring

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN025-08P1-02EG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Circuits: 8*5A, 2*Gigabit Ethernet Protection Grade: IP54
    Working Speed: 0~300rpm Contact Material: Precious Metal
    Rating Voltage: 0~380VAC/VDC Through Bore: 25.4 Mm
    Housing Material: Aluminium Alloy Electrical Noise: ≤70mΩ(50rpm)
    High Light:

    1000M Ethernet Slip Ring

    ,

    25.4mm Ethernet Slip Ring

    ,

    300rpm 1000M Ethernet Slip Ring

    300rpm 25.4mm Through Bore 1000M Ethernet Slip Ring



    1000M Ethernet slip ring used for Automation equipment ,Motion simulator ,Lithium battery equipment



    CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps,or over this speed. It could integrate another current and signal into one slip ring for different customer’s requirement.



    Specification



    ECN025-08P1-02EG
    Circuits 8*5A, 2*Gigabit Ethernet
    Voltage 0~380VAC/VDC
    Electrical noise ≤70mΩ(50rpm)
    Dielectric strength

    ≥1000V@50Hz(power)

    ≥500V@50Hz(signal)

    Insulation resistance

    ≥500MΩ@500VDC(power)

    ≥100MΩ@100VDC(signal)

    Operating speed 0-300 rpm
    Contact material Precious metal
    Housing material Aluminium alloy
    IP protection grade IP54
    Through hole size 25.4mm




    Features

    • Ethernet signals meet protocol requirements
    • Integrate various signal and power
    • Stable transmission,no package loss,no cross talk,low loss
    • 1000M Ethernet signals
    • Through hole size 25.4mm





    Applications

    • Automation equipment
    • Motion simulator
    • Lithium battery equipment
    • Simulation test equipment





    Optional

    • Through hole size
    • Current rating
    • Integrate various signal
    • IP protection grade
    • Cable length



    Outline drawing

    300rpm 25.4mm Through Bore 1000M Ethernet Slip Ring 0





    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.





    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.





    Why with CENO


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.



    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
