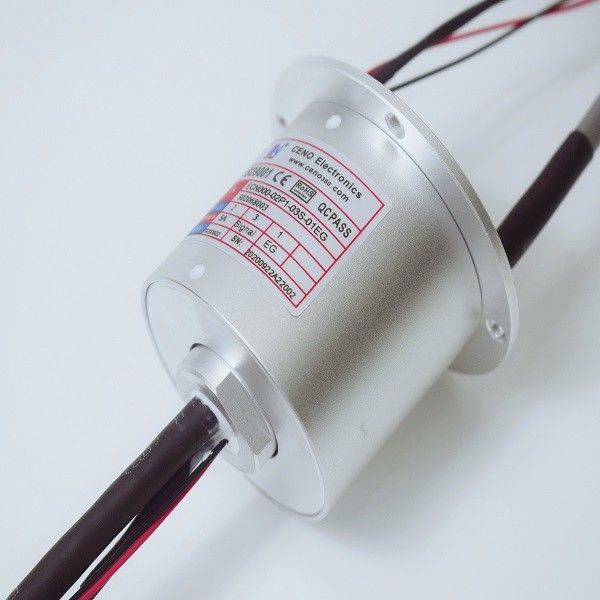

Integrate Signal RS232 220VAC Ethernet Electrical Slip Rings
Ethernet Slip Ring integrate signal RS232 and 5A power used for rotary tables with aluminium alloy housing
The ECN-EG series Ethernet slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets. ECN-EG series slip rings provide 100Base-T or 1000Base-T Ethernet connections with a combination of 5, 10, and 15 amp power connections. Utilizing high performance gold-on-gold contacts, the ECN-EG series features low electrical noise and Ethernet cables terminated with RJ45 connectors.
Need a combined fluid and electrical solution? We offer complete fluid rotary union and electrical slip ring integrated packages.welcome to contact with CENO.
Specification
| ECN000-02P1-03S-01EG | |
| Circuits | 2*5A, 1*Gigabit Ethernet,3*RS232 |
| Voltage | 0~220VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength |
≥1500V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance |
≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Through hole size | None |
Features
1000M Ethernet signals
Integrate signal RS232 and 5A power
Long life time
Stable performance
Applications
Rotary tables
Motion simulator
Lithium battery equipment
Simulation test equipment
Optional
Through hole size
Current rating
Signal type
IP protection grade
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
