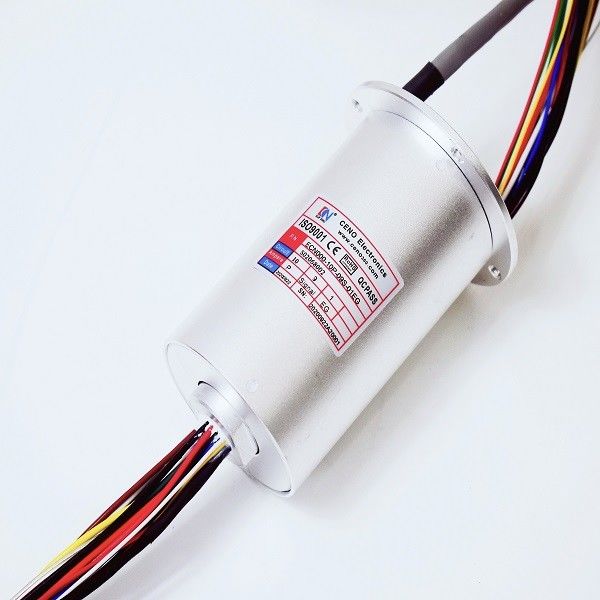

Military Project IP54 300 Rpm Ethernet Rotary Joint

Military Project IP54 300 Rpm Ethernet Rotary Joint

    • Military Project IP54 300 Rpm Ethernet Rotary Joint
    • Military Project IP54 300 Rpm Ethernet Rotary Joint
  • Military Project IP54 300 Rpm Ethernet Rotary Joint

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN000-10P-09S-01EG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Circuits: 8*10A, 2*5A,1*Gigabit Ethernet,9*signals,1*PE Protection Grade: IP54
    Working Speed: 0~300rpm Contact Material: Precious Metal
    Rating Voltage: 0~380VAC/VDC Through Bore: None
    Housing Material: Aluminium Alloy Working Temperature: -20°C~+60°C
    Application: Military Project
    High Light:

    300 Rpm Ethernet Rotary Joint

    ,

    IP54 Ethernet Rotary Joint

    ,

    300Rpm Military Project Rotary Joint

    Military Project IP54 300 Rpm Ethernet Rotary Joint



    CENO Ethernet slip ring with precious metal contacts for military project ,working speed 0-300 rpm, stable performance



    CENO’s Ethernet slip ring solutions have been developed to provide reliable products to allow transfer of the Ethernet protocol through a rotating interface. The innovative designs meet the challenge of matching impedance, controlling crosstalk and managing losses. A wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations. Product specifications available at www.ceno360.com.





    Specification

    ECN000-10P-09S-01EG Specification
    Circuits 8*10A, 2*5A,1*Gigabit Ethernet,9*signals,1*PE
    Voltage 0~380VAC/VDC
    Electrical noise ≤30mΩ(50rpm)
    Dielectric strength

    ≥1500V@50Hz(power)

    ≥300V@50Hz(signal)

    Insulation resistance

    ≥500MΩ@500VDC(power)

    ≥100MΩ@100VDC(signal)

    Operating speed 0-300 rpm
    Contact material Precious metal
    Housing material Aluminium alloy
    IP protection grade IP54
    Through hole size None



    Advantages



    1000M Ethernet signals

    Signal and power integrated

    Working speed 0~300 rpm

    Low torque

    Stable performance





    Applications



    Rotary tables

    Motion simulator

    Lithium battery equipment

    Simulation test equipment

    Turntable equipment

    High-speed railway equipment

    Amusement equipment





    Optional

    Through hole size

    Current rating & circuits number

    Signal type

          IP protection grade

          Cable length





    Outline drawing

    Military Project IP54 300 Rpm Ethernet Rotary Joint 0









    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.





    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.





    Why with CENO


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
