| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-04P2-03EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 4*10A,3*100M Ethernet,1*PE | Through Bore Size: | 38.1 Mm |
|---|---|---|---|
| Protection Grade: | IP54 | Working Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 0~380VAC/VDC |
| Housing Material: | Aluminium Alloy | Electrical Noise: | ≤30mΩ(50rpm) |
| Application: | Measurement Instruments ,medical Mahine | ||
| High Light: | 38.1mm Ethernet Rotary Joint,300rpm Ethernet Rotary Joint,300rpm power slip ring |
||

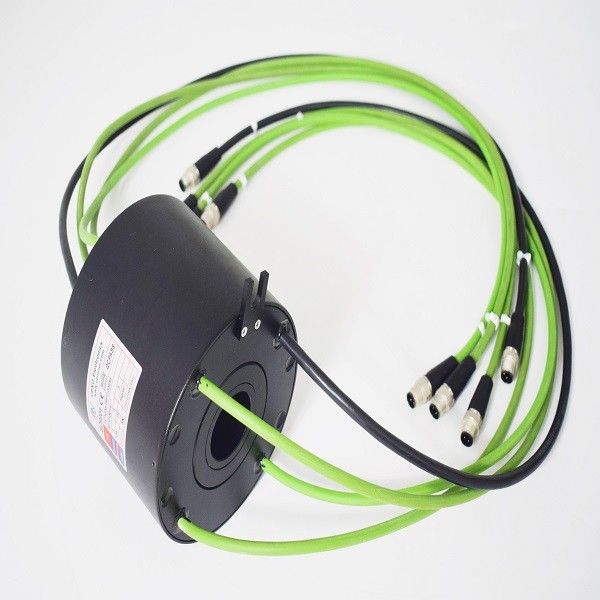

300rpm 38.1mm Ethernet Rotary Joint For Measurement Instruments
3 groups of Ethernet slip ring with 38.1mm inner bore,aluminium housing,used for measurement instruments ,medical mahine.
Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform.It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding. ECN038-04P2-03EM with compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, longer life.Can be apply for automatic machines which require rotating transfer electric/signal/gas/liquid, solve wire winding problems.We can make customized slip ring to rotating transfer RS485/232/422, CANBUS, Profibus, CC-link, USB2.0, Gigabit Ethernet etc.
Specification
| ECN038-04P2-03EM | Specification |
| Circuits & Current | 4*10A,3*100M Ethernet,1*PE |
| Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥1000V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance | ≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Through hole size | 38.1 mm |
| Working temperature | -20°C ~ +60°C |
| Cable length | 5000mm / 3000mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
