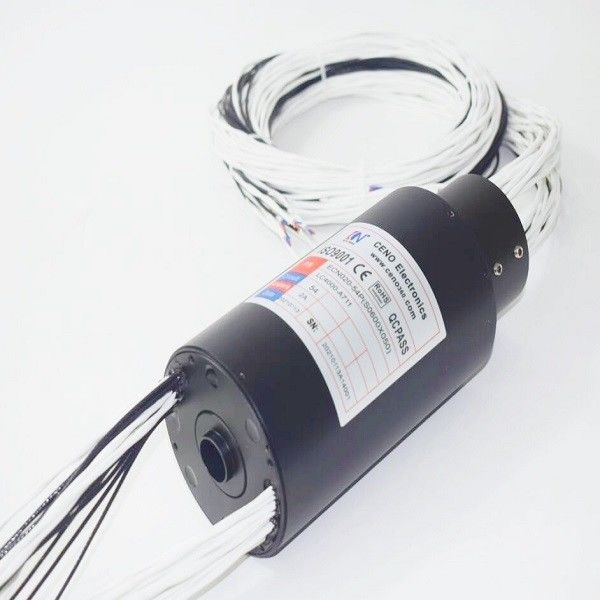

Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power

Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power

  • Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power
  • Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power
  • Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power
Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN020-54P
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 54*2A Through Bore Size: 20 Mm
Protection Grade: IP54 Working Speed: 0~200 Rpm
Contact Material: Gold To Gold Rating Voltage: 0-110VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Application: Display Equipment,Marine Applications
High Light:

20mm Inner bore Slip Ring

,

200rpm Through Hole Slip Ring

,

IP54 Through Hole Slip Ring

Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power





Inner bore 20mm through hole rotary joint slip ring with gold contacts,0-200 rpm working speed ,used for wind power



Rotary though bore slip rings are suitable for high frequency and high data rate transmission and able to endure in hostile environments or at high speed and more. The center hole in the middle of the slip ring is designed to provide clearance for the rotating shaft and rotary joint to meet the function of 360 °rotation of the equipment. ECN series slip rings are designed with consideration for all user experiences from ease of installation, ease of maintenance and optimal product life. ECN020-53P with gold to gold contacts which is more stable transmission and longer lifespan.It’s also can integrate various of signal such as Ethernet,USB, Canbus, Profibus, Thermocouple etc. Protection grade can be reached IP65,IP66,IP68,through bore size can be customized too ,CENO can design the slip ring with Max 980mm inner hole size.Any special requirements please send email to sales@ceno360.com,we will provide you with the best solutions .



      Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power 0



Specification

ECN020-53P Specification
Circuits & Current 54*2A
Voltage 0-110 VAC/VDC
Dielectric strength ≥500V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-200 rpm
Contact material Gold-gold
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 20 mm
Working temperature -20°C ~ +60°C
Cable length 1700mm / 2200mm



Features

  • With gold contacts
  • Long lifetime
  • Working speed 0-200 rpm
  • Compact design







Applications

  • Marine applications
  • Radar antennas
  • Military applications
  • Cable reels
  • Wind turbines
  • Display equipment
  • Wrapping machines




Optional

  • Through hole size
  • Various signal integrate
  • Circuits number
  • IP protection grade
  • Cable length




Outline Drawing

Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power 1



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
