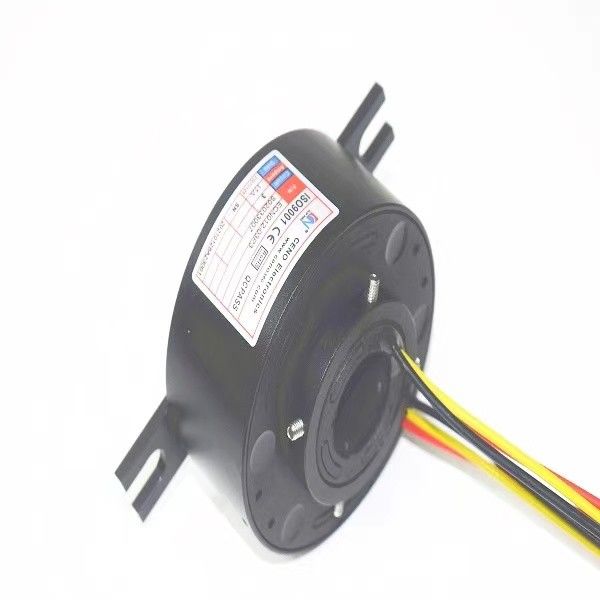

Packaging Machine 25.4mm Through Bore Rotary Joint 300rpm Working Speed

Packaging Machine 25.4mm Through Bore Rotary Joint 300rpm Working Speed

  • Packaging Machine 25.4mm Through Bore Rotary Joint 300rpm Working Speed
  • Packaging Machine 25.4mm Through Bore Rotary Joint 300rpm Working Speed
Packaging Machine 25.4mm Through Bore Rotary Joint 300rpm Working Speed
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN025-03P3
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 3*15A Through Bore Size: 25.4 Mm
Protection Grade: IP54 Working Speed: 0~300 Rpm
Contact Material: Precious Metal Rating Voltage: 0-380VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Application: Offshore Equipment ,Medical Machine
High Light:

25.4mm Through Bore Rotary Joint

,

300rpm Through Bore Rotary Joint

,

Medical machine optical rotary joint

Packaging Machine 25.4mm Through Bore Rotary Joint 300rpm Working Speed



Inner bore size 25.4mm through bore rotary joint with 300 rpm working speed ,used for packaging machine,offshore crane.


Slip rings enable the transfer of electric power or signal across a rotating part, such as those found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites. The sliding contact is established by a brush that presses against a metal ring. The ‘‘brush’1 looks like a brush made from metal fibers, but more often it looks like a single wire or a spring with a pad of material affixed to the end that contacts the ring. This ECN025 slip ring with through bore size 25.4 mm, it can combine with power.signal.Ethernet,USB,Control Net.CANBUS. PROFIBUS. It could also be mounted by shaft or optional flange mounting.Typical application such as wrapping machine,offshore crane,military industry...If you have any special demands please contact with us ,CENO professional engineer will provide the best solutions to you ,welcome to contacting with us .



Specification

ECN025-03P3 Specification
Circuits & Current 3*15A
Voltage 0-380VAC/VDC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 25.4 mm
Working temperature -20°C ~ +60°C






Features

  • Low torque, smooth rotation
  • 360 degree connection
  • Working speed 300 rpm
  • High performance
  • Shaft-mounted
  • Standard hole size 25.4mm
  • Compact size









Applications

  • Radar system
  • Marine applications
  • Food industry
  • Cable reels
  • Packaging machine
  • Medical system











Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material










Outline Drawing


 Packaging Machine 25.4mm Through Bore Rotary Joint 300rpm Working Speed 0







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
