| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-03P2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 3*10A | Through Bore Size: | 25.4 Mm |
|---|---|---|---|
| Protection Grade: | IP51 | Working Speed: | 0~300rpm |
| Contact Material: | Metal Housing | Rating Voltage: | 0`~110 VAC |
| Housing Material: | Aluminium Alloy | Application: | Medical Equipment,Food Industry |
| High Light: | 300rpm Hollow Shaft Slip Ring Hole,Corrosion Proof Hollow Shaft Slip Ring Hole,Anti Vibration hollow shaft slip ring |
||

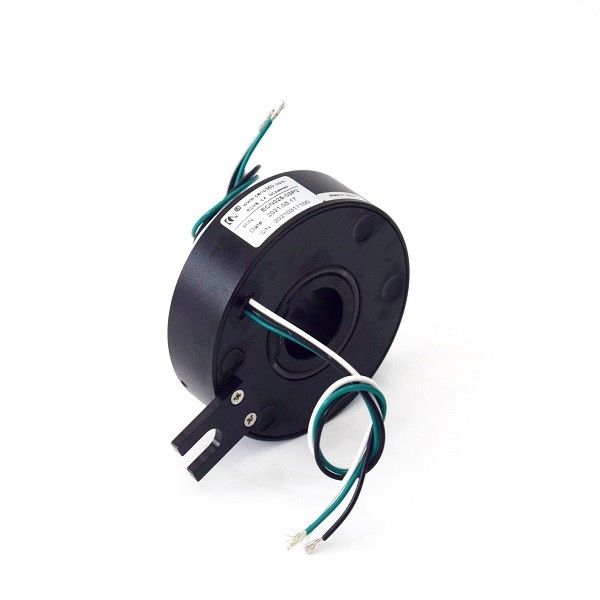

300rpm Hollow Shaft Slip Ring Hole Anti Vibration Corrosion Proof
CENO's hollow shaft slip ring hole size from 3mm to 980mm are optional,working speed 300rpm,black aluminium housing.
Through hole slip rings is also called as hollow shaft slip rings,through bore slip rings .CENO's hollow shaft slip ring hole size from 3mm to 980mm are optional.Standard through hole size are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm, 70mm, 80mm, 100mm ,and all other size are capable to be customized.Various signal such as Ethernet,USB,HDMI,SDI,Canbus,Profibus and power are capable to be integrated into one slip rings to fulfill multi-function system’s demand.CENO has accumulated abundant experience on design solution of Anti-vibration,anti-shock,corrosion proof,water proof and cross talk prevention. Any special demands just contact with us
Specification
| ECN025-03P2 | Specification |
| Circuits & Current | 3*10A |
| Voltage | 0`~110 VAC |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥300MΩ@300VDC |
| Electrical noise | Max 30mΩ (50 rpm) |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| IP grade | IP51 |
| Inner hole size | 25.4 mm |
| Working temperature | -20°C ~ +60°C |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
