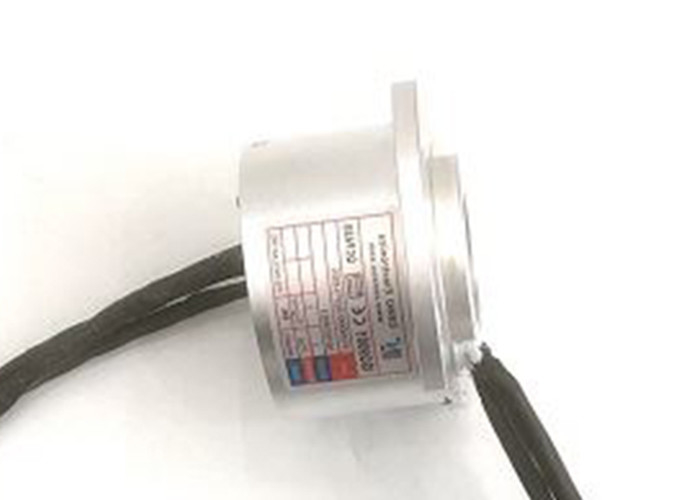

Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole

Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole

  • Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole
  • Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole
  • Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole
Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-02P3-09S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Contact Material: Precious Metal Rating Voltage: 440VAC/VDC
Working Speed: 0~300rpm Circuits: 2 Rings Of 15A & 9 Rings Of Signal
IP Protection Grade: IP51 Housing Material: Aluminum Alloy
Operating Tempeature: -55°C ~ +80°C Inner Hole Size: Blind Inner Hole
High Light:

440 VAC Customized Slip Ring

,

15A Customized Slip Ring

,

Blind Hole Custom Slip Ring

Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole



Customized slip ring with blind hole, 2 rings of 15A & 9 rings of signal,temperature range -55°C ~ +80°C,0-300 rpm .





This is a customized slip ring with blind hole ,CENO customized inner hole size can be choose from 3mm-980mm ,also can integrated various of signals and different current rating.ECN000-02P3-09S with 2 rings of 15A & 9 rings of signal ,it’s can support 1000M Ethernet signal .The working temperature range at -55°C~ +80°C .CENO slip ring can used for many application such as sensors, robotics,measurement instruments, packaging machine, military industry etc.ECN slip rings adopts fiber brush technology, maintenance-free, multi-point contact, low noise, long life, complete product specifications, and can be customized for customers.









Specification



ECN000-02P3-09S Specification
Circuits & Current 2*15A,9*Signal
Voltage 440VAC/VDC
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@300VDC (power)

≥100MΩ@300VDC (signal)

Electrical noise ≤10mΩ (50 rpm)
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminum alloy (white color)
IP grade IP51
Inner hole size Blind inner hole
Working temperature -55°C ~ +80°C









Features

  • Compact structure and flexible installation
  • Long lifetime
  • Stable transmission
  • Low torque,low loss
  • Power integrated signal
  • Working speed 300 rpm









Applications

  • Engineering machinery
  • Marine applications
  • Cable reels
  • Display system
  • Inspection instrument
  • Medical machine
  • Offshore equipment
  • Sewage treatment
  • Military applications








Optional

  • Circuit number
  • Current rating
  • Rotation way
  • Through hole size
  • Signal type
  • IP protection grade
  • Wire length







Outline Drawing







Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole 0













Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Multi Point Contact 15A 440VAC Customized Slip Ring With Blind Hole 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
