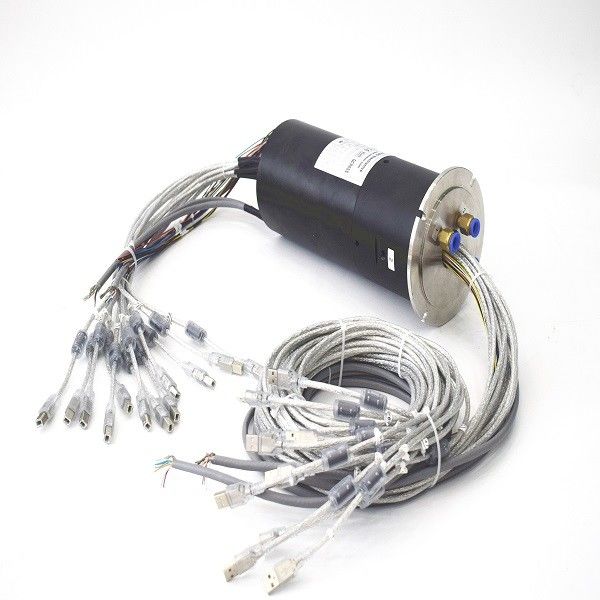

Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels

Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels

  • Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels
  • Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels
Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: QCN0301-04P-20S-02EG-12U2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Gas Channel Number: 3 Interface Size: G1/8″
Gas Pressure: ≤ 1.0MPa Housing Material: Aluminum Alloy + Stainless Steel
Other Circuits: 4*5A,20*signal,12 Groups *USB2.0, 2 Groups *1000M Ethernet Working Speed: 0~5rpm
Contact Material: Precious Metal IP Grade: IP54
Voltage: 0~220VAC/VDC
High Light:

Pneumatic Hydraulic Rotary Union

,

USB2.0 Hydraulic Rotary Union

,

USB2.0 pneumatic rotary union

Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels



Pneumatic/Hydraulic rotary union with Ethernet & USB2.0 signal,3 channels for gas,used for injection molding equipment.







The QCN series single passage rotary unions are compact, light weight and corrosion-resistant featuring a stainless steel shaft and hardcoat anodized aluminum housing. The shaft, housing and seal materials and design makes this an excellent solution when transferring water, coolant, hydraulic oil or air/gas from a stationary source to a rotating component. QCN0301-04P-20S-02EG-12U2 including 3 channels for gas (G1/8″,pressure ≤ 1.0MPa),4 rings for 5A power,20 rings for signal,2 groups for Gigabit Ethernet & 12 groups for USB2.0 signal .The working speed 0~5 rpm with flange installation way.QCN series widely used for rotary tables, injection molding equipment, plastics industry and filling applications etc,.





Features



  • Compact design
  • Transmit Gigabit Ethernet
  • 12 groups of USB2.0
  • Flange installation









Applications



  • Automatic equipment
  • Injection molding equipment
  • Food processing
  • Chemical pharmacy
  • Rotary tables
  • Food processing







Optional



  • Cirtuit channel
  • Pressure size
  • Signal type
  • Connector specification
  • Current rating





Specification



QCN0301-04P-20S-02EG-12U2 Specification
Circuits & Current

4*5A,20*signal,12 groups *USB2.0,

2 groups *1000M Ethernet

Voltage 0~220VAC / VDC
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Operating speed 0-5 rpm
Gas channel 3 channels, G1/8″
Pressure ≤ 1.0MPa
Contact material Precious metal
Housing material Aluminum alloy + Stainless steel
IP grade IP54















Outline Drawing









Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels 0



















Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.





FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Pneumatic Hydraulic Rotary Union With Ethernet USB2.0 Signal 3 Channels 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
