| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | ISO9001 |
| Model Number: | ECN120-03P3-09S-01EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Crate/As request |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Circuit Number: | 3*15A,9*signal,1*100M Ethernet | Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Contact Material: | Precious Metal | IP Grade: | IP54 |
| Operating Speed: | 0~20 Rpm | Housing Material: | Aluminium Alloy+ Stainless Steel |
| Application: | Material Transfer Equipment | Inner Diameter: | 120mm |
| High Light: | 120mm Industrial Slip Ring,IP54 Industrial Slip Ring,Aluminum Alloy through bore slip ring |
||

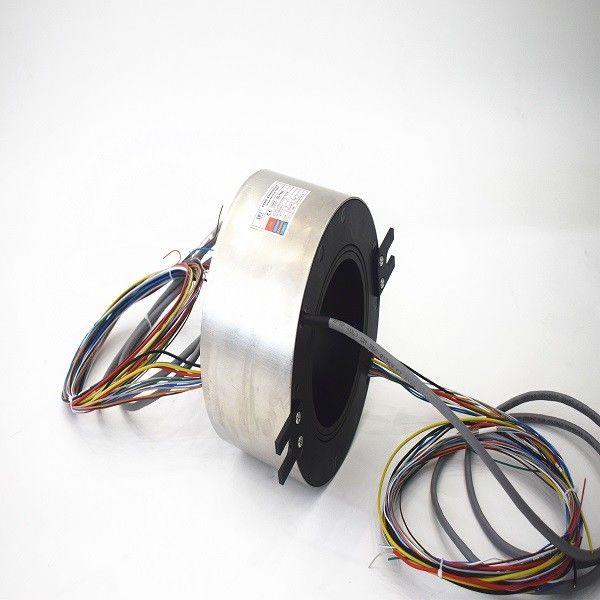

120mm Inner Bore Industrial Slip Ring Aluminum Alloy Stainless Steel Housing
Large Bore Slip Ring With 120mm Inner Bore＆ Ethernet ,Aluminum Alloy+Stainless Steel Housing ,Used For Sewage Treatment
Large size slip ring is named for its large inner bore size. It gets big through hole size and high protection level, is generally used in larger equipment and systems.The system can be fitted directly to the center of the rotation,to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment,industry equipment, large material transfer equipment and other systems.ECN120-03P3-09S-01EM with inner bore size 120mm and integrated 3 rings of 15A & 1 group of 100M Ethernet signal.CENO electronics can provide customized slip ring according different requirements,the inner bore can be choose from 3mm to 980mm,IP grade can reach to IP65,IP67,IP68 etc,.More information about slip rings please check www.ceno360.com ,we will provide with you the best soluition as soon as possibile .
Specification
| ECN120-03P3-09S-01EM | Specification |
| Circuits & Current | 3*15A,9*signal,1*100M Ethernet |
| Voltage | 0~380VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz (power) ≥500VAC@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥200MΩ@200VDC (signal) |
| Operating speed | 0-20 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy + stainless steel |
| Through bore size | 120 mm |
| IP grade | IP54 |
| Working temperature | -40°C~ +60°C |
Features
Applications
Optional
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
