| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN028-03P3 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons/As request |
| Delivery Time: | 1 weeks |
| Payment Terms: | T/T,Paypal, Western Union, L/C |
| Supply Ability: | 1000pcs per month |
| Working Speed: | 0-1420 Rpm | Circuit: | 3*15A |
|---|---|---|---|
| IP Class: | IP44 | Voltage: | 0~380VAC/VDC |
| Housing Material: | Aluminium Alloy | Contact Material: | Precious Metal |
| Operating Temperature: | -20 °C~ +80°C | Installation Way: | Shaft |
| Application: | Testing Equipment,High Speed Train | ||
| High Light: | 1420 Rpm High Speed Rotary Union,IP44 High Speed Rotary Union,1420 Rpm High Speed Slip Ring |
||

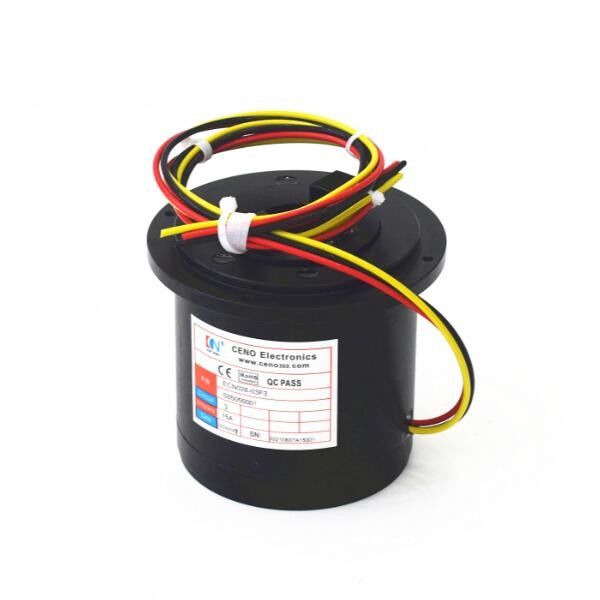

Train 1420 Rpm High Speed Rotary Union Precious Metal Contact Material
High speed slip ring with 1420 rpm inner bore size 28mm,0~380VAC/VDC,Aluminum alloy housing,used for high speed train,testing equipment.
As an electrical part of 360 degree rotating transmission, CENO slip ring can transmit current and signals, such as USB, SDI, Ethernet, sensor signal, and optical signal etc.ECN series high speed slip rings are demand very high accurate tolerances of the rotors, bearing space, high request of the concentricity of the rotors with other related parts. Also we have special ring shape and size of the rings to grantee the low rate of the wear out.ECN028-03P3 with high working speed 1420 rpm,inner bore size is 28mm that we designed according to customer requirements.CENO high speed slip ring max rotation speed up to 10000rpm.It’s widely used in high speed train,nondestructive testing equipment,eddy current testing equipment and so on.Any special requirements please contact with us .we will reply you as soon as possible .
Features
Applications
Optional
Specification
| ECN028-03P3 | Specification |
| Circuits & Current | 3*15A |
| Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Electrical noise | ≤ 30mΩ (50 rpm) |
| Operating speed | 0-1420 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Through bore size | 28 mm |
| IP grade | IP44 |
| Working temperature | -20°C~ +80°C |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
