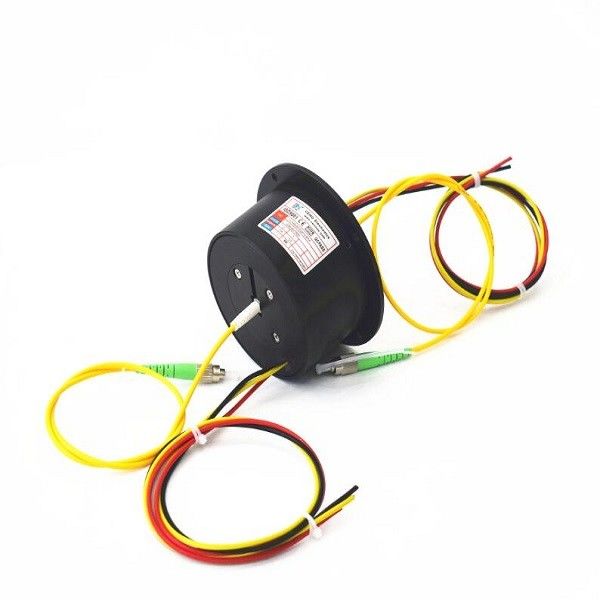

Power Integrated SM Fiber Optic Rotary Joint Wavelength 1310nm 1550nm

Power Integrated SM Fiber Optic Rotary Joint Wavelength 1310nm 1550nm

  • Power Integrated SM Fiber Optic Rotary Joint Wavelength 1310nm 1550nm
  • Power Integrated SM Fiber Optic Rotary Joint Wavelength 1310nm 1550nm
Power Integrated SM Fiber Optic Rotary Joint Wavelength 1310nm 1550nm
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-03P3-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuits: 3*15A,1 Group Fiber Optic Protection Grade: IP51
Working Speed: 0-300 Rpm Contact Material: Precious Metal
Fiber Channels: 1 Channel Housing Material: Aluminium Alloy
Working Temperature: -20 ~ +60 °C Fiber Type: SM
High Light:

SM Fiber Optic Rotary Joint

,

1310nm Fiber Optic Rotary Joint

,

1550nm optical rotary joint

Power Integrated SM Fiber Optic Rotary Joint Wavelength 1310nm 1550nm



Power integrated SM fiber optic rotary joint ,wavelength 1310/1550nm,fiber type SM .working speed 300 rpm,housing material is aluminium ,used for radar antennas





Fiber optic rotary joint, also known as fiber optic slip ring, fiber optic rotary connector, optical hinges, etc. This slip ring adopts optical fiber as media for transmitting data, providing the best technical solution for elements of system to transmit data when rotating. It is especially suitable for equipments that require unlimited, continuous or intermittent rotation and transmit large capacity of data and signals from stationary position to rotary position,optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.ECN000-03P3-01F integrated 3 rings power & 1 group of SM fiber optic,electrical noise is 30mΩ under working speed 50 rpm,flange installation.







Specifications





ECN000-03P3-01F Specification
Circuits & Current 3*15A,1 group fiber optic
Voltage 0~400VDC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminum alloy
IP grade IP51
Wave length 1310/1550nm
Fiber type SM
Connector FC-APC/FC-APC





Features

  • Power integrated fiber optic
  • Wavelength 1310/1550nm
  • Fiber type SM
  • Stable transmition









Applications

  • Military applications
  • Radar antennas
  • Offshore applications
  • Harsh environments







Optional

  • Circuits number
  • IP protection grade
  • Fiber optic type
  • Signal type & current rating
  • Wavelength









Outline drawing
