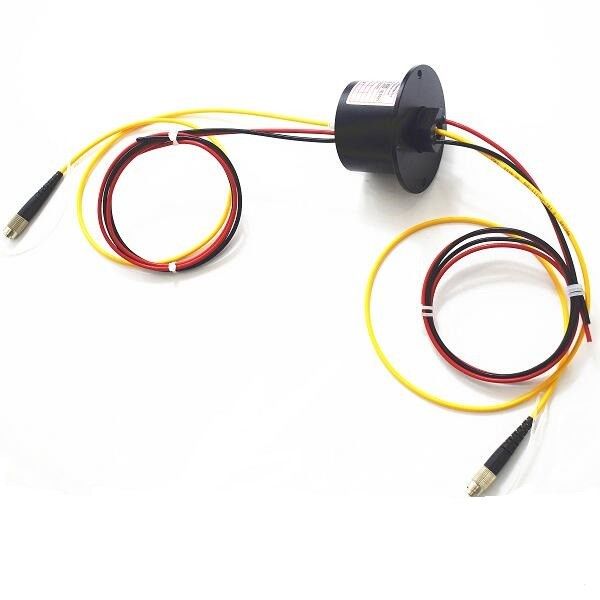

Aluminum Alloy 1310Nm 1550 Nm Fiber Optic Rotary Joint With SM Connector

Aluminum Alloy 1310Nm 1550 Nm Fiber Optic Rotary Joint With SM Connector

  • Aluminum Alloy 1310Nm 1550 Nm Fiber Optic Rotary Joint With SM Connector
  • Aluminum Alloy 1310Nm 1550 Nm Fiber Optic Rotary Joint With SM Connector
Aluminum Alloy 1310Nm 1550 Nm Fiber Optic Rotary Joint With SM Connector
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-02P3-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuits: 2*12A,1*fiber Optic Protection Grade: IP51
Working Speed: 0-1000 Rpm Contact Material: Precious Metal
Fiber Channels: 1 Channel Housing Material: Aluminium Alloy
Working Temperature: -20 ~ +60 °C Fiber Type: SM
Wave Length: 1310/1550 Nm
High Light:

1550Nm Fiber Optic Rotary Joint

,

Aluminum Alloy Fiber Optic Rotary Joint

,

1550Nm optical rotary joint

Aluminum Alloy 1310Nm 1550 Nm Fiber Optic Rotary Joint With SM Connector



Stable performance fiber optic rotary joint with SM connector,wavelength 1310/1550 nm,aluminum alloy housing,working speed 0-1000 rpm,Widely used for medical equipment,inspection instrument,rotary tables etc.







This unit can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.It can provide high speed,long life,high protection slip ring customization,and integrate a variety of signals,such as Ethernet,USB,RS,CANbus, FireWire,SDI,HDMI,etc.ECN000-02P3-01F with compact power and signal handling design provides unique capability for many challenging applications.also provide smoother running,higher design precision, lower torque,lower contact resistance,and lower electrical noise than competitive slip rings.CENO also provide special design according to customer's requirements,please contact with us if you have any project about slip ring ,we will reply you as soon as possibile.







Specification



Specification
Circuits & Current 2*12A,1*fiber optic
Voltage 0-400VAC/VDC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@50VDC
Electrical noise ≤30mΩ (50 rpm)
Operating speed 0-1000 rpm
Contact material Precious metal
Housing material Aluminum alloy
IP grade IP51
Fiber channel & type 1 channel SM
Wavelength 1310/1550 nm







Features

  • Power integrated fiber optic
  • High working speed
  • Flange installation
  • Wavelength 1310/1550nm
  • Fiber type SM









Applications

  • Medical equipment
  • Inspection instrument
  • Rotary tables
  • Test benches







Optional

  • Circuits number
  • IP protection grade
  • Fiber optic type
  • Signal type & current rating
  • Wavelength









Outline drawing







Aluminum Alloy 1310Nm 1550 Nm Fiber Optic Rotary Joint With SM Connector 0











Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.









Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
