| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | ISO9001 |
| Model Number: | ECN000-29P-21S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Crate/As request |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Circuit Number: | 4*10A,25*2A,13*signal,8*servo Motor | Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Contact Material: | Precious Metal | IP Grade: | IP54 |
| Operating Speed: | 0~100 Rpm | Housing Material: | Aluminium Alloy |
| Application: | Measurement Instruments | Inner Diameter: | Solid Bore |
| Working Temperature: | -20℃~+60℃ | ||
| High Light: | 380VDC Industrial Slip Ring,4*10A Industrial Slip Ring,380VDC rotary slip ring |
||

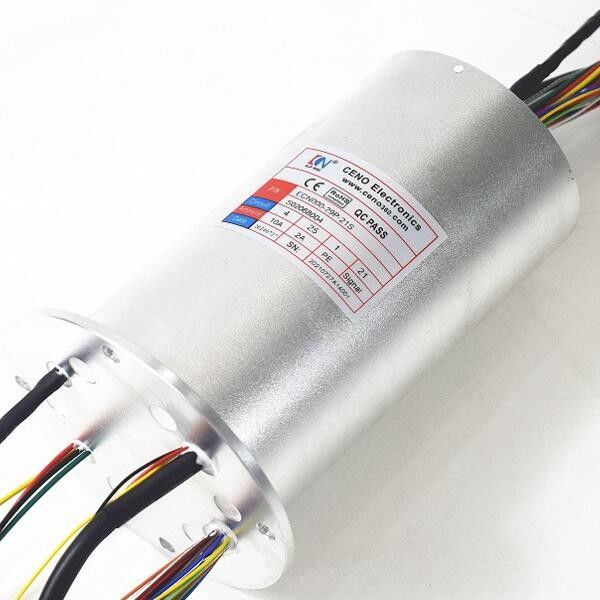

Reliability performance servo motor slip ring,voltage 0~380VAC/VDC,100 rpm working speed,for automatic winding machine ,display table,can be customized with different solutions.
CENO is a technical manufacturing company,it’s has abundant experience in design and assembling for specific industries. Such slip rings are designed especially for servo motor signal transmission,usually with the characteristics of precious metal contact,aluminum alloy housing,protection level can up to IP68.It has a long service life up to 10 million turns and customizable wire length.Furthermore,it is water-proof,pressure-proof,vibration resistant and of good reliability and quality.ECN000-29P-21S with solid bore and integrated power,signal in one slip ring.The inner bore size can be customized from 0mm to 980mm,any special requirements please contact with CENO team,we will provide the best solution for you.
Specification
| ECN000-29P-21S Specification | |
| Circuits & Current | 4*10A,25*2A,13*signal,8*servo motor |
| Voltage | 0~380VAC/VDC |
| Electrical noise | Max 30mΩ (50rpm) |
| Dielectric strength |
≥1000V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
| Operating speed | 0-100 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Through hole size | Solid through bore |
Features
Applications
Optional
Outline drawing:
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
