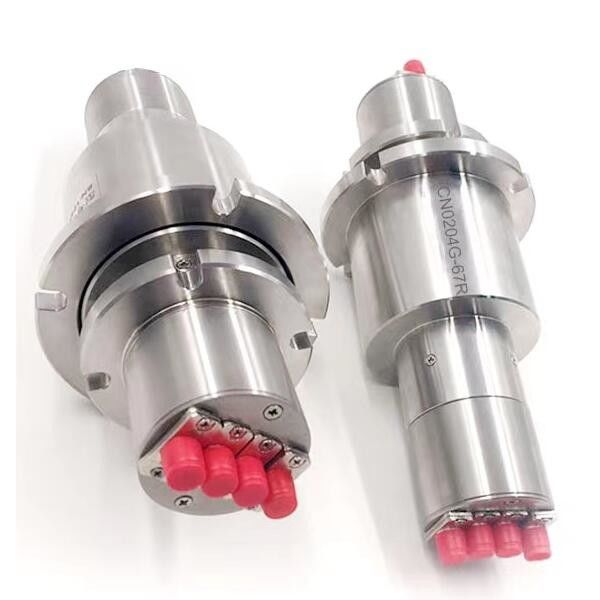

Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector

Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector

  • Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector
  • Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector
Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: FCN0204G-67R
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuits: 2-6 Channels Optional Protection Grade: IP54
Working Speed: 0-300 Rpm Contact Material: Precious Metal
Housing Material: Aluminium Alloy Working Temperature: -20 ~ +60 °C
Fiber Type: ST,FC,SC Wave Length: 850/1550 Nm
Weight: 1400 G
High Light:

300 rpm Fiber Optic Rotary Joint

,

Low Torque Fiber Optic Rotary Joint

,

Low Torque optical rotary joint

Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector





Low torque fiber optic rotary joint with 2 to 6 channels optional,wavelength 850/1550 nm,connector ST,FC,SC are optional.Widely used for medical equipment,packaging machine,inspection instrument,rotary tables etc.







Fiber optic rotary joint,also known as fiber optic slip ring,fiber optic rotary connector,optical hinges,etc.This slip ring adopts optical fiber as media for transmitting data,provide the best technical solution for elements of system to transmit data when rotating.It is especially suitable for equipments that require unlimited, continuous or intermittent rotation and transmit large capacity of data and signals from stationary position to rotary position,optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel,also can integrated power & other signals.This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.









Specification



FCN0204G-67R Specification
Fiber channel 2-6 channels optional
Wavelength 850nm -1550nm (SM/MM)
Insertion loss <3.5dB
Insertion loss fluctuation <1.5dB
Pulling force ≤12N
Operating speed 0-300 rpm
Return loss ≥40dB
Weight 1400 g
Housing material Stainless steel
IP grade IP54
Vibration shock standard GJB150
Connector ST,FC,SC





Features

  • Working speed 300 rpm

  • Long lifetime

  • Smooth rotation,low torque

  • Stable transmition





Applications

  • Military applications
  • Radar antennas
  • Offshore applications
  • Harsh environments





Optional

  • Circuits number
  • IP protection grade
  • Fiber optic type
  • Signal type & current rating
  • Wavelength









Outline drawing







Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector 0Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector 1

























Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.









Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
