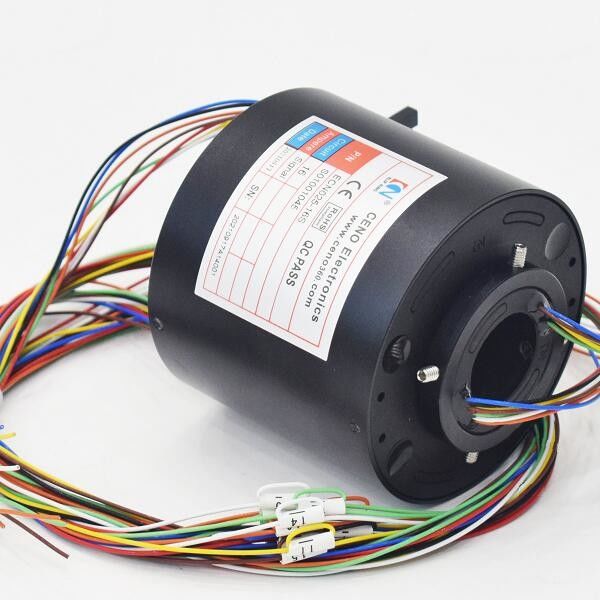

Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing

Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing

  • Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing
  • Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing
Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN025-16S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 16*signal Through Bore Size: 25.4 Mm
Protection Grade: IP51 Working Speed: 0~300rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Outer Diameter: 86mm
High Light:

300rpm Signal Through Hole Slip Ring

,

25.4mm Through Hole Slip Ring

,

25.4mm through bore slip ring

Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing



Signal through hole slip ring 25.4mm hole,0~380V,300rpm working speed,aluminium housing,used for wind power,cable reel,military industrial and process control equipments.





In the industry automation processing,especially in servo systems and factory room net works,it need transmission more signals,data,Ethernet to control the motion of the machinery.we use special design technology,gold to gold contact to make sure the high quality transmission of the data,power.We also can use equipment testing the Ethernet,return loose,insert loose etc performance.To make the production in process more easy and correct.ECN025-16S provides an economical,readily available solution when a compact through bore configuration is required.This unit provides a 25.4mm through bore for 16 rings signal transmission and a compact 86mm outside diameter for minimal space applications.






Specification





ECN025-16S                                                       Specification
Rings 16*signal
Voltage 0~380VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
Working temperature -20℃~+60℃
IP protection grade IP51
Through hole size 25.4mm










Features

  • Transmit signal
  • Smooth rotation
  • 25.4mm inner bore
  • Smooth rotation
  • High performance

  • Compact structure




Applications

  • Automotive applications
  • Medical machine
  • Industry equipment
  • Display table
  • Packaging machine
  • Medical equipment
  • Rotation tab
  • Process control equipment
  • Military industrial
  • Rotary index tables






Optional

  • Through hole size
  • Current rating
  • Signal type
  • IP protection grade









Outline Drawing







 Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing 0

















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
