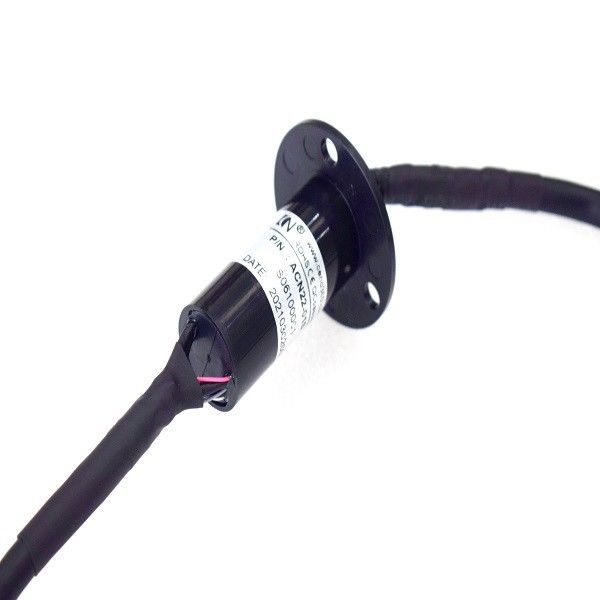

400VAC Rotary Slip Ring Capsule With DP Connector Aluminium Housing Material

400VAC Rotary Slip Ring Capsule With DP Connector Aluminium Housing Material

  • 400VAC Rotary Slip Ring Capsule With DP Connector Aluminium Housing Material
  • 400VAC Rotary Slip Ring Capsule With DP Connector Aluminium Housing Material
400VAC Rotary Slip Ring Capsule With DP Connector Aluminium Housing Material
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ACN022-01S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union, L/C
Supply Ability: 10000pcs month
Contact Now
Detailed Product Description
Current: 1*DP Cable Voltage: 0~400VAC/VDC
OD: Φ22 Mm Electrical Noise: 35m Ω Max
Contact Material: Precious Metal Protection Grade: IP54
Housing Material: Aluminium Alloy Operating Speed: 0~100 Rpm
Application: Display Equipment
High Light:

400VAC Rotary Slip Ring

,

400VAC Slip Ring Capsule

,

continuous Rotary Slip Ring

400VAC Rotary Slip Ring Capsule With DP Connector Aluminium Housing Material





ACN022-01S is a capsule slip ring with DP connector ,it’s used for display port ,same as HD-SDI,USB,HDMI.ACN series have compact inner structure and stable transmission.





This series slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.ACN022-01S is a capsule slip ring with DP connector ,it’s used for display port ,same as HD-SDI,USB,HDMI.ACN series have compact inner structure and stable transmission. Ring number are range from 2 rings up to 100 rings.Power and signal are easily to be integrated into one slip rings under our years of proven technique.Typical outside diameter is 5.5mm,12.4mm, 22mm in these series.







Specification





ACN022-01S Specification
Circuits & Current 1*DP cable
Voltage 0~400VAC/VDC
Dielectric strength ≥100V@50Hz (signal)
Insulation resistance ≥10MΩ@100VDC (signal)
Operating speed 0-100 rpm
Contact material Precious metal
Housing material Engineering plastics
Connector DP female connector
Out diameter 22 mm
Working temperature -20°C ~ +60°C







Features

  • Small size
  • Compact design
  • With DP cable
  • Smooth rotation





Applications

  • Surveillance
  • Mechanical arm
  • Display equipment
  • Radar antenna









Optional

  • Cable length
  • Current & ring numbers
  • Signal type
  • IP protection grade







Outline drawing





400VAC Rotary Slip Ring Capsule With DP Connector Aluminium Housing Material 0











Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
