| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ACN22T7-04 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union, L/C |
| Supply Ability: | 10000pcs month |
| Current & Circuits: | 4*1A | Rating Voltage: | 110VAC/1A |
|---|---|---|---|
| Dielectric Strength: | ≥200VAC@50Hz | Isolation Resistance: | ≥50MΩ@100VDC |
| Electrical Noise: | 10mΩ (50rpm) | Operating Speed: | 0~100rpm |
| Contact Material: | Precious Metal | Housing Material: | Engineering Plastic |
| Working Temperature: | -20°C~+60°C | IP Protection Grade: | IP40 |
| Working Humidity: | 60%RH | External Diameter: | Ø22mm |
| Inner Diameter: | Ø7.1mm | ||
| High Light: | 4*1A Mini Slip Ring,Rotary Interface Mini Slip Ring,Through Hole Capsule Slip Ring |
||

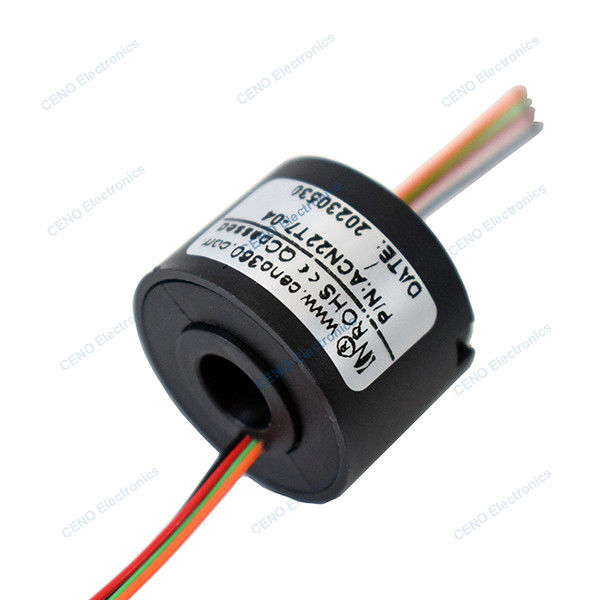

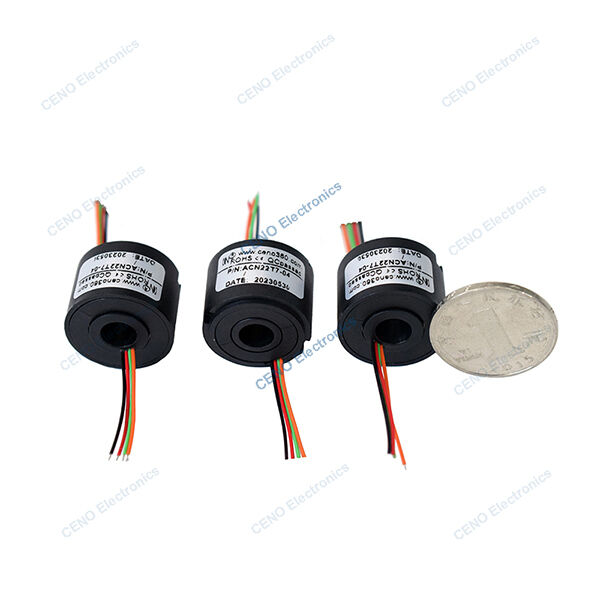

Mini Slip Ring with Capsule Through Hole Rotary Electrical Interface
ACN22T7-04 is CENO’s miniature capsule slip ring with non-flange and has inner diameter 7mm, outer diameter 22mm and length 16mm. The Miniature capsule slip ring is specially designed for data and other signals transmission of small and miniature-size equipment. Like as the children intelligent toys, stage light, speed dome camera and drones etc. Capsule slip ring have many features that is small compact structure, low electrical noise, can transmit various data signal and most of the parameters are optional. For more information about how CENO’s slip ring can fit your application, please contact us.
Features
Small and compact structure fit in the demanding space
Can be integrated various data
Install easily & transmit stably
Short leading time
Applications
Drones
Intelligent toys
Stage light
High speed dome
Medical equipment
Optional
Circuit, Voltage, Current
Signals
Contact / Housing Materials
Boundary dimension
Working speed
Specification
ACN22T7-04 | Specification |
| Current & Circuits | 4*1A |
| Rating Voltage | 110VAC/1A |
| Dielectric strength | ≥200VAC@50Hz |
| Isolation resistance | ≥50MΩ@100VDC |
| Contact resistance | 10mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Engineering plastic |
| Working temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP40 |
| Operating speed | 0~100rpm |
| Inner diameter | Ø7.1mm |
| External diameter | Ø22mm |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
